YLG-3.0 Hydrophore Tank

1.Technical Requirements:

1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.

2. Outer Joint:

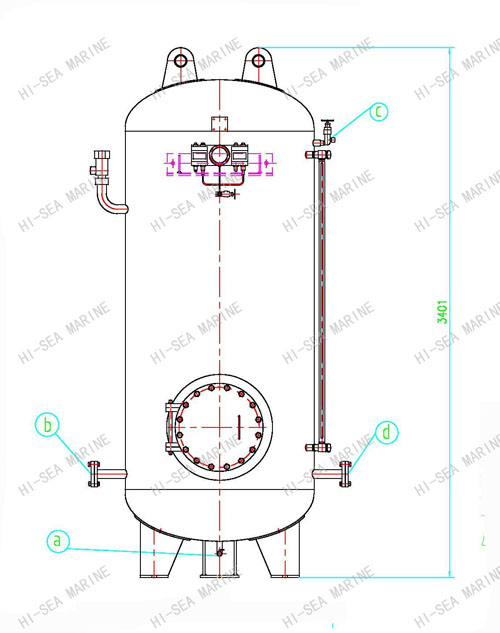

YLG-3.0 Hydrophore Tank

Mark

Name

Size

Standard

a

relief outlet

DN32

b

Water Inlet

DN50

CB/T46-1999 PN1.0

c

Compressor Air Inlet

DN10

CB*53-80

d

Water Outlet

DN50

CB/T46-1999 PN1.0

3. Design Datas:

Working Pressure	0.6Mpa
Design Pressure	0.7Mpa
Working Temp.	0~45℃
Design Temp.	50℃
Main Materials	CCS-B/SS304/SS316
corrosion allowance	0.75mm
welded joint coefficient	0.6
Capacity	3.0m³
The relief valve pressure jump	0.63MPa
G.W.	865 Kgs (with standard export wooden case)
N.W.	775 Kgs
