ZYG-0.2 Marine Pressure Water Tank

1.Technical Requirements:

1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.

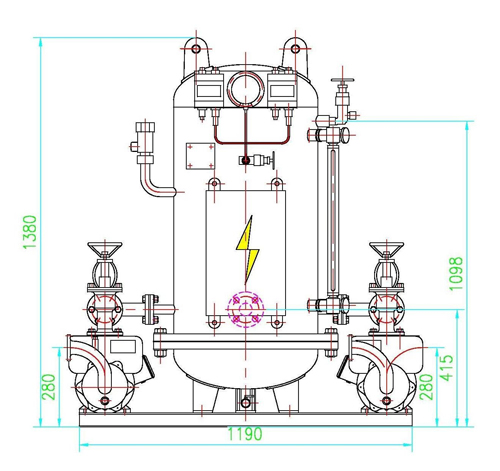

2. General Drawing:

3. Design Datas:

Working Pressure	0.4Mpa
Design Pressure	0.44Mpa
Working Temp.	0~45℃
Design Temp.	50℃
Main Materials	CCS-B/SS304/SS316
corrosion allowance	0.75mm
welded joint coefficient	0.6
Capacity	0.2m³
The relief valve pressure jump	0.42MPa
G.W.	520 Kgs (with standard export wooden case)
N.W.	320 Kgs

4. Pumps Mian Parameters:

Capacity	3 m³/hr
Head	40 meters
Speed	2900 RPM
Power	2.2 Kw

5. Certificate Supply:

ZYG-0.2 Marine Pressure Water Tank
