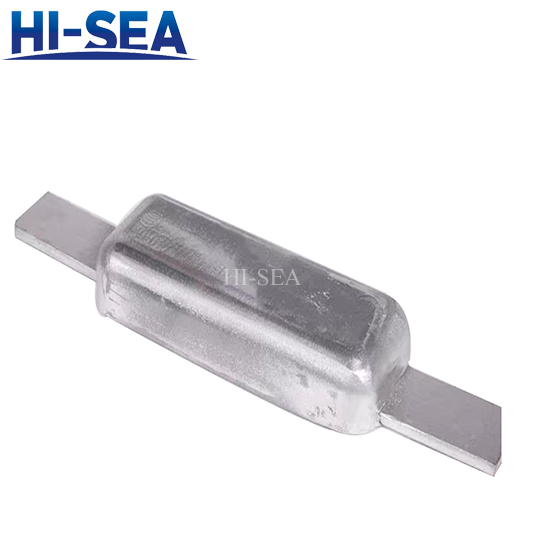

Zinc Anode for Ballast Water Tank


Zinc Anode for Ballast Water Tank

Aluminum-Zinc-Cadmium series (ZAC Series) is a sacrificial anode casted by high purity zinc and aluminum, cadmium alloy.

This product is approved by CCS and its quality standards is in accordance with the GB/T4950-2002 standard. The zinc anode chemical composition conforms to the standard of US MIL-A-18001H and ASTM-B418 (Type 1). The anode used for pipelines is at the same time in line with SY/T0019-97 ˇ®Design Code for Sacrificial Anode Cathodic Protection of Buried Steel PipelineˇŻ.


Implementing Standard

GB/T4950-2002


Main Performance

1. Small autolysis;

2. High current efficiency and excellent self-regulating property when current occurs;

3. Long protection period(up to 20 to 30 years), generally no ˇ®over protectionˇŻ phenomenon occurring.


Anode Application

Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil.


Zinc Anode for Ballast Water Tank

Type

Specification

(mm)

Iron Foot Size

(mm)

Net Weight

(kg)

Gross Weight

(kg)

AˇÁ(B1+B2)ˇÁC

D

E

F

G

H

ZT-1

500ˇÁ(115+135)ˇÁ130

800

50

6

40

60

53.5

56.0

ZT-2

1500ˇÁ(65+75)ˇÁ70

1800

-

¦µ16

20

40

48.3

50.0

ZT-3

500ˇÁ(110+130)ˇÁ120

800

800

50

6

40

60

48.0

50.0

ZT-4

1000ˇÁ(58.5+74)ˇÁ65

1300

-

¦µ16

20

40

31.8

33.0

ZT-5

800ˇÁ(56+74)ˇÁ65

1100

-

¦µ16

20

40

24.0

25.0

ZT-6

1150ˇÁ(48+54)ˇÁ51

1450

-

¦µ1

15

35

18.6

20.0

ZT-7

250ˇÁ(80+100)ˇÁ85

310

30

4

6~8

0

12.8

13.0

ZT-8

200ˇÁ(70+90)ˇÁ70

260

30

3

6~8

0

7.3

7.5

Note 1: ZT-1& ZT-8 are flat type anodes;

Note 2: ZT-2, ZT-4,ZT-5 & ZT-6 anodesˇŻ iron feet are round bar steel.


Zinc Anode for Ballast Water Tank

Cathodic Protection System Zinc Alloy Sacrificial Anode
