Zinc Anode
Aluminum-Zinc-Cadmium series (ZAC Series) is a sacrificial anode casted by high purity zinc and aluminum, cadmium alloy.
This product is approved by CCS and its quality standards is in accordance with the GB/T 4950-2002 standard. The zinc anode chemical composition conforms to the standard of US MIL-A-18001H and ASTM-B418 (Type 1). The anode used for pipelines is at the same time in line with SY/T0019-97 ¡®Design Code for Sacrificial Anode Cathodic Protection of Buried Steel Pipeline¡¯.
Implementing Standard
GB/T 4950-2002
Main Performance:
Anode has small autolysis, high current efficiency and excellent self-regulating property when current occurs. Its protection period is long up to 20 to 30 years, generally no ¡®over protection¡¯ phenomenon occurring.
Application:
Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil.
Chemical Composition (%)
|
Chemical Element |
Al |
Cd |
Impurity Element |
Zn |
|||
|
Fe |
Cu |
Pb |
Si |
||||
|
Content |
0.3~0.6 |
0.05~0.12 |
¡Ü0.005 |
¡Ü0.005 |
¡Ü0.006 |
¡Ü0.125 |
margin |
Electrochemical Properties
|
Electrochemical Properties |
Open Circuit Potential V |
Working Potential V |
Actual Capacitance (Ah/kg) |
Consumption Rate (Ah/kg) |
Current Efficiency % |
Dissolution Performance |
|
In Sea Water (1mA/cm2) |
-1.09~-1.05 |
-1.05~-1.08 |
¡Ý780 |
¡Ü11.23 |
¡Ý95 |
Surface dissolution is even, while the corrosion products are easy to fall off |
|
In Soil (0.03mA/cm2) |
¡Ü-1.05 |
¡Ü-1.03 |
¡Ý530 |
¡Ü17.25 |
¡Ý65 |
Zinc Anode for Storage Tank
|
Type |
Specification (mm) |
Iron Feet Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
||
|
A¡Á(B1+B2)¡ÁC |
D |
F |
G |
|||
|
ZC-1 |
750¡Á(115+135)¡Á130 |
900 |
16 |
8~10 |
82.0 |
85.0 |
|
ZC-2 |
500¡Á(115+135)¡Á130 |
650 |
16 |
8~10 |
55.0 |
56.0 |
|
ZC-3 |
500¡Á(105+135)¡Á100 |
650 |
16 |
8~10 |
39.0 |
40.0 |
|
ZC-4 |
300¡Á(105+135)¡Á100 |
400 |
12 |
8~10 |
24.6 |
25.0 |
Zinc Anode for Buried Pipeline
|
Type |
Specification (mm) |
Iron Feet Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|||
|
A¡Á(B1+B2)¡ÁC |
D |
E |
F |
G |
|||
|
ZP-1 |
1000¡Á(78+88)¡Á85 |
700 |
100 |
16 |
30 |
49.0 |
50.0 |
|
ZP-2 |
1000¡Á(65+75)¡Á65 |
700 |
100 |
16 |
25 |
32.0 |
33.0 |
|
ZP-3 |
800¡Á(60+80)¡Á65 |
600 |
100 |
12 |
25 |
24.5 |
25.0 |
|
ZP-4 |
650¡Á(58+64)¡Á60 |
500 |
100 |
12 |
20 |
21.5 |
22.0 |
|
ZP-5 |
650¡Á(58+64)¡Á60 |
400 |
100 |
12 |
20 |
17.6 |
18.0 |
|
ZP-6 |
550¡Á(58+64)¡Á60 |
400 |
100 |
12 |
20 |
14.6 |
22.0 |
|
ZP-7 |
600¡Á(52+56)¡Á54 |
460 |
100 |
12 |
15 |
12.0 |
12.5 |
|
ZP-8 |
600¡Á(40+48)¡Á45 |
360 |
100 |
12 |
15 |
8.7 |
9.0 |
Zinc Anode for Port and Offshore Engineering Facilities
|
Type |
Specification (mm) |
Thread Steel Foot Size (mm) |
Flat Steel Foot Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|||||
|
A¡Á(B1+B2)¡ÁC |
D |
F |
G |
|
E |
F |
G |
|||
|
ZT-1 |
1000¡Á(115+135)¡Á130 |
1250 |
18 |
45 |
1250 |
40 |
8 |
45 |
111.6 |
115.0 |
|
ZT-2 |
750¡Á(115+135)¡Á130 |
1000 |
16 |
45 |
1000 |
40 |
8 |
445 |
83.0 |
85.0 |
|
ZT-3 |
500¡Á(115+135)¡Á130 |
750 |
16 |
45 |
750 |
40 |
6 |
45 |
55.0 |
56.0 |
|
ZT-4 |
500¡Á(105+135)¡Á100 |
750 |
16 |
35 |
750 |
40 |
6 |
35 |
38.6 |
40.0 |
Rectangle Type Zinc Anode for Sea Water Cooling System
|
Type |
Specification (mm) |
Iron Foot Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|||
|
A¡Á(B1+B2)¡ÁC |
D |
E |
F |
G |
|||
|
ZE-1 |
500¡Á(115+135)¡Á130 |
620 |
50 |
6 |
8~10 |
54.5 |
56.0 |
|
ZE-2 |
1000¡Á(80+100)¡Á80 |
1200 |
30 |
6 |
6~8 |
49.0 |
50.0 |
|
ZE-3 |
500¡Á(105+135)¡Á100 |
620 |
40 |
6 |
8~10 |
39.2 |
40.0 |
|
ZE-4 |
500¡Á(80+100)¡Á80 |
620 |
30 |
6 |
6~8 |
24.4 |
25.0 |
|
ZE-5 |
400¡Á(110+120)¡Á50 |
500 |
35 |
4 |
5~6 |
15.4 |
16.0 |
|
ZE-6 |
300¡Á(140+160)¡Á40 |
360 |
60 |
4 |
5~6 |
12.0 |
12.5 |
|
ZE-7 |
200¡Á(90+110)¡Á40 |
250 |
30 |
3 |
5~6 |
5.3 |
5.5 |
Disc Type Zinc Anode for Seawater Cooling Water System
|
Type |
Specification (mm) |
Iron Foot Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|||||
|
A¡ÁB |
C |
D |
E |
F |
H |
G |
|||
|
ZE-8 |
300¡Á60 |
40 |
80 |
50 |
12 |
6~8 |
6 |
29.8 |
30.0 |
|
ZE-9 |
360¡Á40 |
50 |
100 |
70 |
14 |
5~6 |
6 |
28.3 |
28.5 |
|
ZE-10 |
300¡Á40 |
40 |
80 |
50 |
12 |
5~6 |
6 |
19.8 |
20.0 |
|
ZE-11 |
200¡Á50 |
35 |
75 |
45 |
10 |
5~6 |
4 |
10.3 |
10.5 |
|
ZE-12 |
180¡Á50 |
35 |
75 |
45 |
10 |
5~6 |
4 |
8.3 |
8.5 |
|
ZE-13 |
120¡Á100 |
30 |
75 |
45 |
10 |
8~10 |
4 |
7.3 |
7.5 |
Welding Type Zinc Anode for Ship Hull (Single Iron Foot)
Type
Specification
(mm)
Iron Foot Size (mm)
Net Weight
(kg)
Gross Weight
(kg)
A¡ÁB¡ÁC
D
E
F
G
ZH-1
800¡Á140¡Á60
900
45
5~6
8~10
45.4
47.0
ZH-2
800¡Á140¡Á50
900
45
5~6
6~8
37.4
39.0
ZH-3
800¡Á140¡Á40
900
45
5~6
5~6
29.5
31.0
ZH-4
600¡Á120¡Á50
700
40
5~6
6~8
24.0
25.0
ZH-5
400¡Á120¡Á50
470
35
4~5
6~8
15.3
16.0
ZH-6
500¡Á100¡Á40
580
40
4~5
5~6
12.7
13.6
ZH-7
400¡Á100¡Á40
460
30
4~5
5~6
10.6
11.0
ZH-8
300¡Á100¡Á40
360
30
3~4
5~6
7.2
7.5
ZH-9
250¡Á100¡Á40
310
30
3~4
5~6
6.2
6.5
ZH-10
180¡Á70¡Á40
230
25
3~4
5~6
3.3
3.5
Welding Type Zinc Anode for Ship Hull (Double Iron Feet)
|
Type |
Specification (mm) |
Iron Foot Size (mm) |
Net Weight (kg) |
Gross Weight (kg) |
|||
|
A¡ÁB¡ÁC |
D |
E |
F |
G |
|||
|
ZH-11 |
300¡Á150¡Á50 |
360 |
30 |
4~5 |
5~6 |
13.7 |
14.5 |
|
ZH-12 |
300¡Á150¡Á40 |
360 |
30 |
4~5 |
5~6 |
10.7 |
11.5 |
Bolt Connection Type Zinc Anode for Ship Hull
Type
Specification(mm)
Weight(kg)
A¡ÁB¡ÁC
ZH-13
300¡Á150¡Á50
12
ZH-14
300¡Á150¡Á40
9

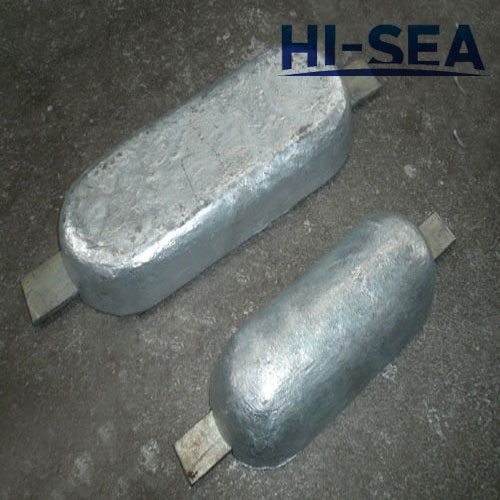

Zinc Alloy Galvanic Anode
Zinc Alloy Sacrificial Anode for Cathodic Portection

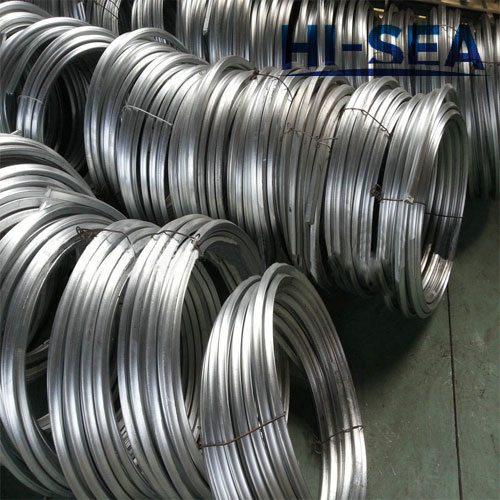

Zinc Ribbon Anode
