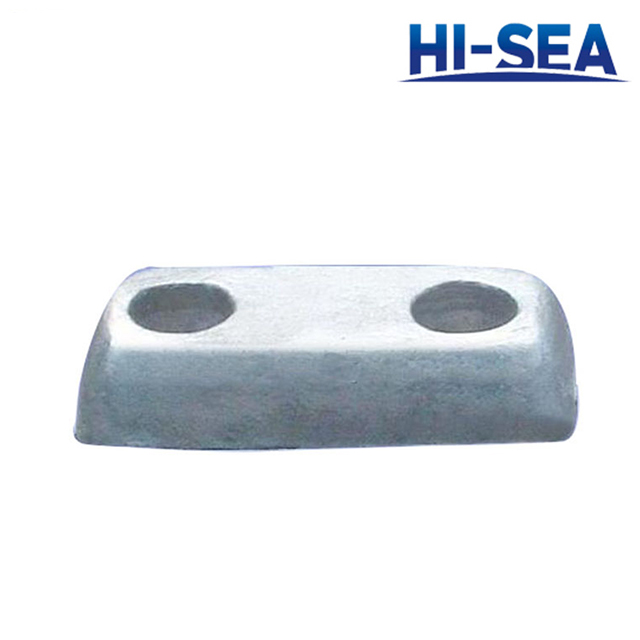

Bolt Connection Type Zinc Anode for Ship Hull


Bolt Connection Type Zinc Anode for Ship Hull

Aluminum-Zinc-Cadmium series (ZAC Series) is a sacrificial anode casted by high purity zinc and aluminum, cadmium alloy.

This product is approved by CCS and its quality standards is in accordance with the GB/T4950-2002 standard. The zinc anode chemical composition conforms to the standard of US MIL-A-18001H and ASTM-B418 (Type 1). The anode used for pipelines is at the same time in line with SY/T0019-97 °ģDesign Code for Sacrificial Anode Cathodic Protection of Buried Steel Pipeline°Į.


Implementing Standard

GB/T4950-2002


Main Performance

1. Small autolysis;

2. High current efficiency and excellent self-regulating property when current occurs;

3. Long protection period(up to 20 to 30 years), generally no °ģover protection°Į phenomenon occurring.


Anode Application

Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil.


Bolt Connection Type Zinc Anode for Ship Hull

Type

Specification

(mm)

Iron Foot Size (mm)

Net Weight

(kg)

Gross Weight

(kg)

A°ŃB°ŃC

D

E

F

G

ZH-13

300°Ń150°Ń50

250

50

3~4

8~10

11.6

12.0

ZH-14

300°Ń150°Ń40

250

50

3~4

8~10

8.6

9.0


Chemical Composition (%)

Chemical Element

Al

Cd

Impurity Element

Zn

Fe

Cu

Pb

Si

Content

0.3~0.6

0.05~0.12

°‹0.005

°‹0.005

°‹0.006

°‹0.125

margin


Electrochemical Properties

Electrochemical Properties

Open Circuit Potential

V

Working Potential

V

Actual Capacitance

(Ah/kg)

Consumption Rate

(Ah/kg)

Current Efficiency

%

Dissolution Performance

In Sea Water

(1mA/cm2)

-1.09~-1.05

-1.05~-1.08

°›780

°‹11.23

°›95

Surface dissolution is even, while the corrosion products are easy to fall off

In Soil

(0.03 mA/cm2)

°‹-1.05

°‹-1.03

°›530

°‹17.25

°›65
