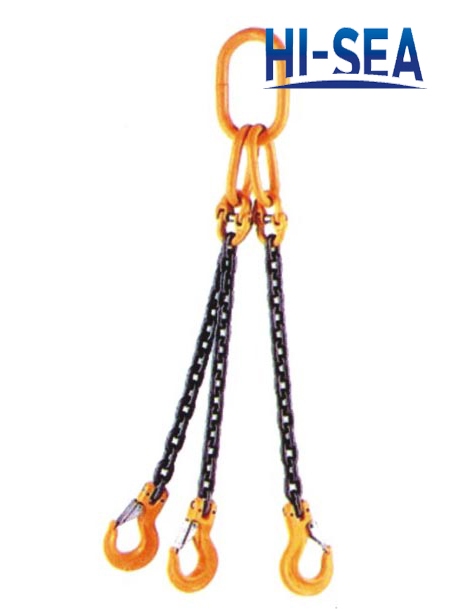

Three Legs Chain Sling

Three Legs Chain Sling

Three legs chain sling is adapted to use in large-scale and frequent occasions. The flexible multilimb structure and assembling forms can improve the work efficiency and cut the cost. It is made of premium alloy steel sted with good ware-resisting quality. Objects must hang on the center of the hook, the edge of the hook shall not be hang in. And the heavy objests should not be hang in the hook for a long time.

Product Details:

1. Item: Three legs chain sling

2. Grade: G80

3. Structure: Welded chain

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, Color painted

7. Function: Drag chain

8. Size: 6mm-30mm

9. Must be used in the range of its rated load.

10. Special specifications and marks can be made according to customers requirement

Specification:

Dia.of chain

WLL(T)

Weight

Chain weight

A

B

d

mm

a45

45㩂a60

kg/m

kg

mm

mm

mm

6

2.1

1.5

5.79

0.79

80

150

20

8

3.1

2.5

9.66

1.38

90

160

24

10

5.2

3.7

18.47

2.2

100

190

28

12

7.3

5.2

26.34

3.1

100

190

28

14

10.5

7.5

32.04

4.13

120

230

34

16

12.6

9

41.66

5.63

135

250

38

18

16.8

12

51.56

6.85

140

270

42

20

21

15

64.41

8.6

160

310

46

22

25.2

18

119.3

10.2

180

330

52

24

29.4

21

122.6

12.78

180

330

52

26

35.7

25

196.99

14.87

180

330

56

30

46.2

33

210.79

19.6

210

410

62

Three Legs Chain Sling

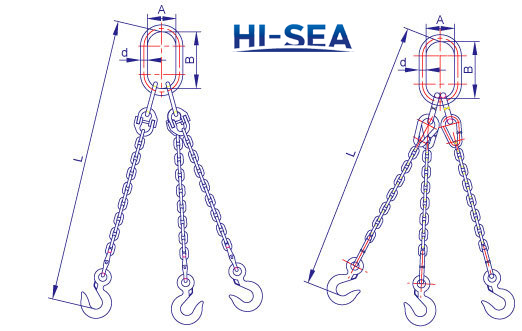

Sketch of the three legs chain sling

Three Legs Chain Sling

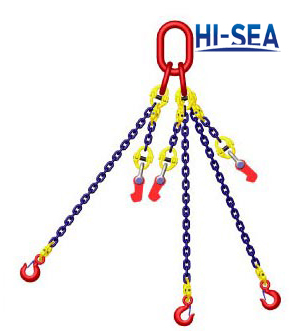

Three Legs Chain Sling-A

Three Legs Chain Sling

Three Legs Chain Sling-B
