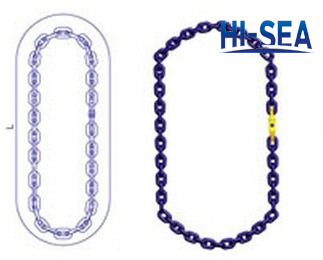

Endless Chain Sling

Endless Chain Sling

Endless chain sling is adapted to use in large-scale and frequent occasions. The parameter of chain in the tableis in accordance with JB/TB108.1-1990 Grade (8). The ratio between working load and breaking load is 1:4. And we can design and produce other type of chain sling according to customers requirement.

Product Details:

1. Item: Endless chain sling

2. Grade: G80

3. Structure: Welded chain

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, polished, color painted

7. Function: Drag chain

8. Size: 6mm-34mm

9. Must be used in the range of its rated load.

10. Special specifications and marks can be made according to customers requirement

Specification:

Dia.of chain(mm)	WLL(T)	Weight(kg/m)
6	2	1.63
8	3	2.85
10	5	4.61
12	7	6.54
14	10	8.86
16	12	12.09
18	16	14.78
20	20	18.64
22	24	22.32
24	28	28.11
26	34	32.85
30	44	42.88
34	72	50.17
