Four Legs Chain Sling

Four Legs Chain Sling

Four legs chain sling can be used as one leg chocker chain sling when the hook is inside the link. But the working load will be reduced 20%. The ratio between working load and breaking load is 1:4. And we can design and produce other type of chain sling according to customers requirement.

Product Details:

1. Item: Four legs chain sling

2. Grade: G80

3. Structure: Hollow chain

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, polished, color painted

7. Function: Drag chain

8. Size: 6mm-30mm

9. Must be used in the range of its rated load.

10. Special specifications and marks can be made according to customers requirement

Specification:

Dia.of chain

WLL(T)

Weight

Chain weight

A

B

d

mm

a45

45㩂a60

kg/m

kg

mm

mm

mm

6

2.1

1.5

7.33

0.79

80

150

20

8

3.1

2.5

12.21

1.38

90

160

24

10

5.2

3.7

23.42

2.2

100

190

28

12

7.3

5.2

33.77

3.1

100

190

28

14

10.5

7.5

40.54

4.13

120

230

34

16

12.6

9

53.51

5.63

135

250

38

18

16.8

12

64.47

6.85

140

270

42

20

21

15

79.88

8.6

160

310

46

22

25.2

18

150.42

10.2

180

330

52

24

29.4

21

155.75

12.78

180

330

52

26

35.7

25

253.27

14.87

180

330

56

30

46.2

33

268.64

19.6

210

410

62

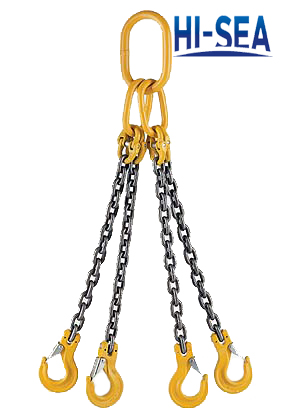

Four Legs Chain Sling

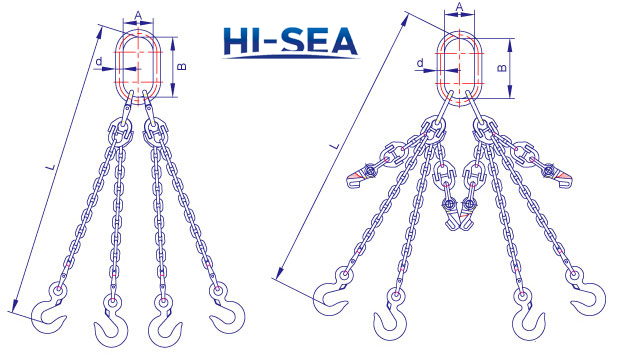

Sketch of the four legs chain sling

Four Legs Chain Sling

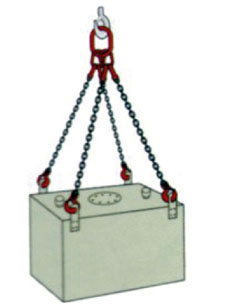

Product Application

Four Legs Chain Sling

Four Legs Chain Sling
