Straight Clamp Sight Glass

Straight Clamp Sight Glass:

1.Manufacturing standard:HGJ502-501-86.

2.Connection type:Flange/Thread/Butt welding.

3.End standard: GB,HG,JIS,ANSI,DIN.

4.DN:20mm¡«500mm.

5.PN:0.6¡«5.0Mpa.

6.Ambient temperature:0¡«250¡æ£¬0¡«800¡æ.

7.Material of construction:

No.

1

2

3

4

Component

Body

Glass

Sealing gasket

Bolt/Nut

Material

A3 pp FRP

304 304L

316 316L

Boron

Quartz

silicon

NBR Metal

Graphite PTFE

304 304L

316 316L

8.Dimension table:

DN

20

25

40

50

65

80

100

125

L/mm

145

189

234

278

278

308

308

364

H/mm

200

260

260

320

320

360

360

440

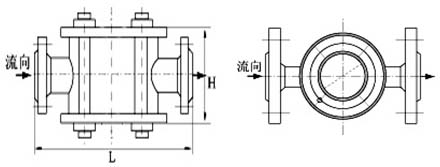

9.Drawing of Straight Clamp Sight Glass:

Straight Clamp Sight Glass

Contact with us now
