Sight Glass with neck
[Search Related Products]
Sight Glass with neck:
1.Manufacturing standard:HGJ501-502-86.
2.Connection type:Flange/Thread/Butt welding.
3.End standard: GB,HG,JIS,ANSI,DIN.
4.DN:25mm¡«500mm.
5.Operation temperature:0¡æ¡«250¡æ.
6.Material of construction:
|
No. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Glass |
Sealing gasket |
Bolt/Nut |
|
Material |
A3 304 304L 316 316L |
Boron silicon Quartz |
NBR Metal Asbestos PTFE |
304 304L 316 316L |
7.Dimension table:
|
DN |
L |
H |
|
50 |
115 |
73 |
|
80 |
145 |
82 |
|
100 |
185 |
88 |
|
125 |
205 |
88 |

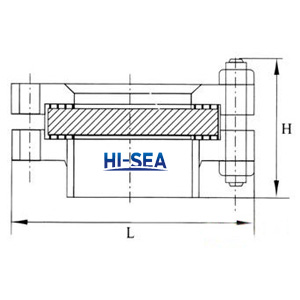

8.Drawing of Sight Glass with neck:
