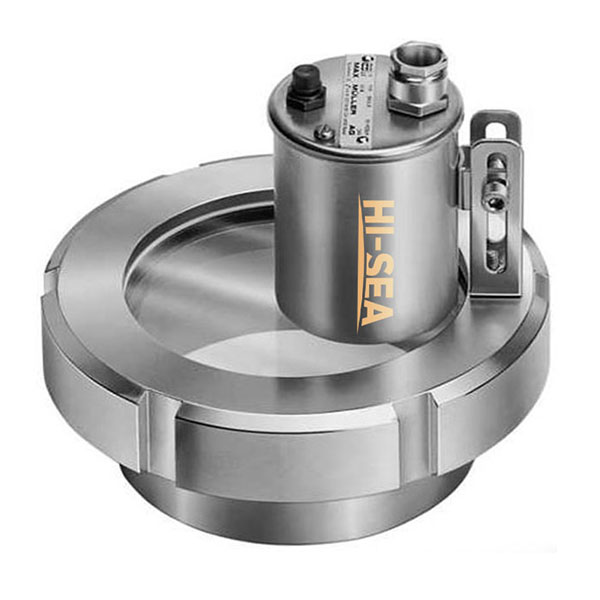

Sightglass with Lamp

Sightglass with Lamp:

1.Manufacturing standard:HGJ502-501-86.

2.Connection type:Butt Welding.

3.Flange standard:GB,HG,JIS,ANSI DIN.

4.DN:100mm,125mm,150mm.

5.Operation temperature:

▪ Silex glass: -30~800íŠ;

▪ Borosilicate glass: -30~250íŠ.

6.Material of construction:

No.

1

2

3

4

Component

Body

Glass

Sealing gasket

Bolt/Nut

Material

CS

304 304L

316 316L

FRPP

Slilex

Borosilicate

NBR Metal

Graphite PTFE

304

316L

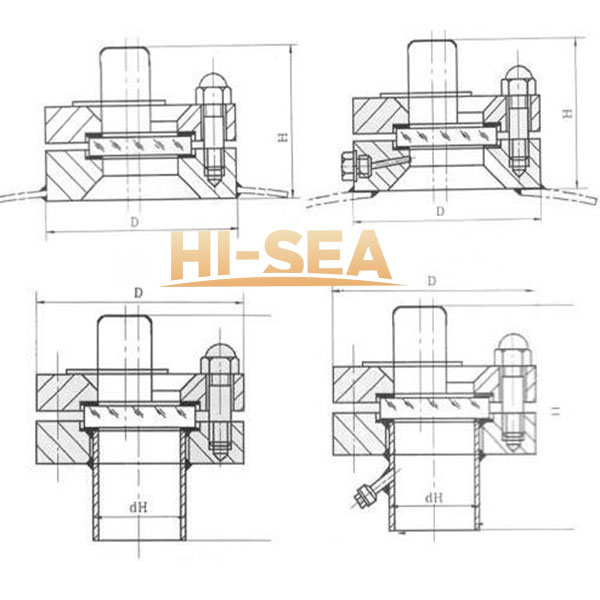

7.Drawing of Sightglass with Lamp:

Sightglass with Lamp
