SMA-II/SMA-IIB/SMC Water-lubricated End Face Seal

SMA-II/SMA-IIB/SMC Water-lubricated End Face Seal

This product is water lubricated end face seal. It is suitable for kinds of vessels whose lubricating medium is water and which have a large stern shaft diameter and axial vibration. This product is approved by certificates such as CCS, BV, DNV, KR, etc. We can supply three types of this product: type SMA-II, type SMA-IIB, and type SMC. Customer can choose freely from the three types. If you caní»t find the size you want, we can make a special design.

Drawing and specification:

SMA-II/SMA-IIB/SMC Water-lubricated End Face Seal

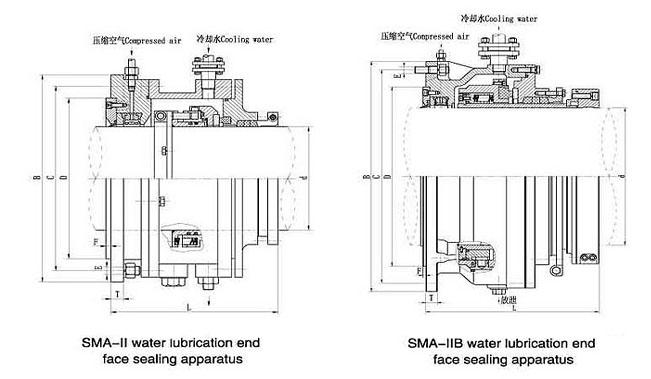

Drawing of SMA-II and SMA-IIB Water Lubricated End Face Seal

SMA-II/SMA-IIB/SMC Water-lubricated End Face Seal

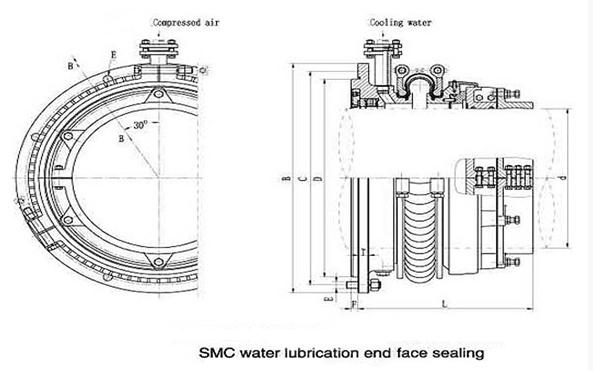

Drawing of SMC Water Lubricated End Face Seal

Specifications

Dimensions (mm)

B

C

D

L

T

E

F

55

250

210

165

300

18

8

M10

10

75

265

225

180

300

18

8

M10

10

95

280

240

195

300

18

8

M10

10

115

300

260

215

340

18

8

M10

10

135

330

280

235

340

20

8

M12

10

155

340

300

255

340

20

8

M12

10

175

260

320

275

340

20

8

M12

10

185

450

390

230

298

25

8

M20

10

195

420

355

305

370

25

8

M16

10

200

460

420

350

370

25

8

M20

10

215

440

375

325

370

25

8

M16

10

230

460

395

345

370

25

8

M16

10

250

480

415

355

370

25

8

M16

10

255

480

440

370

370

28

8

M20

10

260

480

440

370

370

25

8

M20

10

270

530

440

385

370

25

8

M20

10

280

500

440

400

330

25

8

M20

10

290

550

460

405

370

25

8

M20

10

302

550

500

425

460

25

8

M20

10

310

580

485

425

460

25

8

M20

10

325

590

510

445

460

25

8

M20

12

345

620

540

465

460

25

8

M20

12

354

670

620

570

460

25

8

M20

12

360

670

590

485

460

25

8

M20

12

365

670

570

485

460

25

8

M24

12

385

700

595

515

520

30

8

M24

12

386

650

595

510

520

30

8

M20

12

402

680

630

530

480

30

8

M20

12

405

680

630

530

455

30

8

M24

12

425

740

635

555

520

30

8

M24

12

445

715

655

575

495

30

8

M24

12

465

735

675

595

495

30

8

M24

12

480

800

700

615

520

30

12

M24

15

490

750

700

620

500

30

12

M20

15

500

840

720

635

520

30

12

M24

15

520

800

750

680

520

30

12

M20

15

530

800

750

700

520

30

8

M20

15

540

880

76

675

520

30

12

M24

15

550

900

780

695

520

30

12

M24

15

570

930

800

715

520

30

12

M24

15

590

950

820

735

580

30

12

M24

15

610

950

840

755

580

30

12

M24

15

630

970

870

775

580

30

12

M30

20

650

990

890

795

580

30

12

M30

20

670

1010

910

815

580

30

12

M30

20

690

1030

930

835

580

30

12

M30

20

710

1050

950

855

620

30

12

M30

20

730

1070

970

875

620

30

12

M30

20

750

1090

990

895

620

30

12

M30

20

760

1120

1010

915

620

30

12

M30

20

780

1140

1030

935

620

30

12

M30

20

800

1160

1050

955

620

30

12

M30

20
