Silencer for Axial Flow Blower

Silencer for Axial Flow Blower:

1. Manufacture standard:GB 12348-1990.

2.Inspection standard:GB/T 14623-1993.

3.Silencer absorbance:15-25dB.

4.Flange standard:HG,GB,HGJ,JB,ANSI,,DIN,BS,NF.

5.Sealing face:RF,FF,MFM,TG.

6.Material:A3,304,304L,316,316L.

7.Sealing gasket:NBR,PTFE,Metal,Graphite.

8.Operating temprature:-50桫350.

9.Fundamental dimensions of Silencer for Axial Flow Blower

D1/mm

L/ mm

D2/mm

P<Pa

V/( M3/h)

200

1500

600

100

1000-3000

300

1800

700

200

3000-6000

400

1800

800

235

4000-8000

500

2000

1000

250

8000-12000

600

2200

1200

260

10000-15000

700

2200

1400

270

12000-20000

800

2600

1500

275

15000-25000

900

2600

1600

280

17000-30000

1000

2600

1800

290

20000-35000

1200

2800

2000

300

30000-60000

1400

2800

2100

600

50000-100000

1600

30000

2300

800

100000-200000

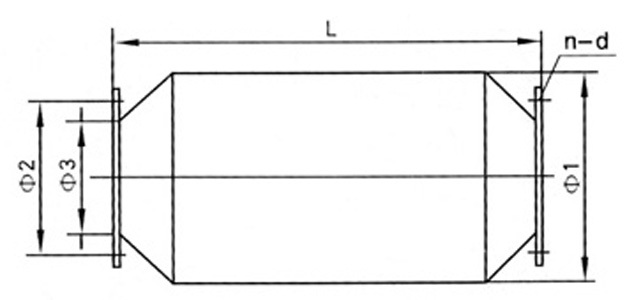

10.Drawing of Silencer for Axial Flow Blower:

Silencer for Axial Flow Blower
