Ship Launching Airbag

Ship Launching Airbag

Ship launching airbag can be used to launch and upgrade a ship up to 100,000DWT. The 'flexible launching techonology' makes this new ship launching method widely used all over the world. It is widely applied for ship launching, heavy lifting and moving, and buoyancy with superior advantages, such as significantly reducing cost (well over 30%) as well as being safe, easily adaptable to various harsh working environments, and environmentally friendly etc

Airbag specification and performance
The bearing capacity at work pressure is calculated as follows:
Q=p·S……………………（1）
Where: Q—Bearing capacity of airbag;
p--Work pressure of airbag;
S--Frontal projected area of contact surface.

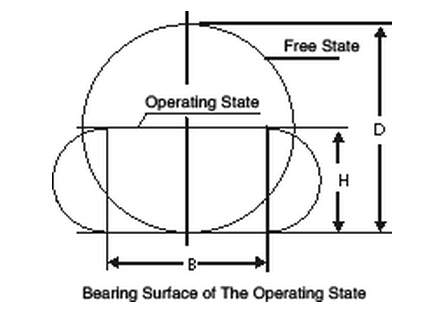

The width, B, of the airbag’s contact with a heavy object or ground when the airbag is pressed to certain height, H, (See Fig. 7) can be calculated according to the following equation:
B=∏/2（D-H）………………（2）

Category	Airbag Diameter(m)	Operating Pressure (Mpa)	Test Pressure (Mpa)	Bearing Capacity Each Meter of Airbag(kn/m)
Category	Airbag Diameter(m)	Operating Pressure (Mpa)	Test Pressure (Mpa)	Operating Depth 0.5D	Operating Depth 0.4D	Operating Depth 0.3D	Operating Depth 0.2D
Medium Pressure Airbag	0.3	0.340	0.408	80	96	112	128
	0.6	0.167	0.200	79	94	110	126
	0.8	0.125	0.150	79	94	110	126
	1	0.100	0.120	79	94	110	126
	1.2	0.084	0.101	79	95	111	127
	1.5	0.067	0.080	79	95	111	126
	1.8	0.056	0.067	79	95	111	126
	2	0.050	0.060	79	94	110	124
	2.5	0.040	0.048	79	94	110	252
	3	0.033	0.040	78	93	109	251
High Pressure Airbag	0.6	0.334	0.401	157	189	220	252
	0.8	0.250	0.300	157	188	220	251
	1	0.200	0.240	157	188	220	251
	1.2	0.167	0.200	157	189	220	252
	1.5	0.133	0.160	157	188	219	251
	1.8	0.111	0.133	157	188	220	251
	2	0.100	0.120	157	188	220	251
	2.5	0.080	0.096	157	188	220	251
	3	0.067	0.080	158	189	220	253
Ultra High Pressure Airbag ClassⅠ	0.6	0.500	0.650	236	283	330	--
	0.8	0.375	0.488	236	283	330	--
	1	0.300	0.390	236	283	330	--
	1.2	0.250	0.325	236	283	330	--
	1.5	0.200	0.260	236	283	330	--
	1.8	0.167	0.217	236	283	331	--
	2	0.150	0.195	236	283	330	--
	2.5	0.120	0.156	236	283	330	--
Ultra High Pressure Airbag Class Ⅱ	0.6	1.000	1.300	471	565	660	--
	0.8	0.750	0.975	471	565	660	--
	1	0.600	0.780	471	565	660	--
	1.2	0.500	0.650	471	565	660	--
	1.5	0.400	0.520	471	565	660	--
	1.8	0.333	0.433	471	565	659	--
	2	0.300	0.390	471	565	660	--
	2.5	0.240	0.312	471	565	660	--
