Marine Airbag

Marine Airbag

Marine Airbag is used for ship launching, loading, and floating. They are widely applied for cargo boat/ship/vessel launching and landing, lifting and moving sunken ships, and salvaging stranded boats. Air bags have the advantages of labor saving, time saving, strength saving and investment saving. In addition, it is flexible, reliable, safe and economic.

Characters of Marine Airbag
1. High Strength
2. Wear Resistance and Anti-aging
3. Good Air Tightness
4. Safety and Reliability
5. High kneading and Compressing Resistance and Damping Capacity

Specifications of Marine Airbag:

Category

Airbag Diameter(m)

Operating Pressure (Mpa)

Test Pressure (Mpa)

Bearing Capacity Each Meter of Airbag(kn/m)

Operating Depth 0.5D

Operating Depth 0.4D

Operating Depth 0.3D

Operating Depth 0.2D

Medium Pressure Airbag

0.3

0.340

0.408

80

96

112

128

0.6

0.167

0.200

79

94

110

126

0.8

0.125

0.150

79

94

110

126

1

0.100

0.120

79

94

110

126

1.2

0.084

0.101

79

95

111

127

1.5

0.067

0.080

79

95

111

126

1.8

0.056

0.067

79

95

111

126

2

0.050

0.060

79

94

110

124

2.5

0.040

0.048

79

94

110

252

3

0.033

0.040

78

93

109

251

High

Pressure Airbag

0.6

0.334

0.401

157

189

220

252

0.8

0.250

0.300

157

188

220

251

1

0.200

0.240

157

188

220

251

1.2

0.167

0.200

157

189

220

252

1.5

0.133

0.160

157

188

219

251

1.8

0.111

0.133

157

188

220

251

2

0.100

0.120

157

188

220

251

2.5

0.080

0.096

157

188

220

251

3

0.067

0.080

158

189

220

253

Ultra High

Pressure Airbag Classó˝

0.6

0.500

0.650

236

283

330

--

0.8

0.375

0.488

236

283

330

--

1

0.300

0.390

236

283

330

--

330

1.2

0.250

0.325

236

283

330

--

1.5

0.200

0.260

236

283

330

--

1.8

0.167

0.217

236

283

331

--

2

0.150

0.195

236

283

330

--

2.5

0.120

0.156

236

283

330

--

Ultra High

Pressure Airbag Class ó˛

0.6

1.000

1.300

471

565

660

--

0.8

0.750

0.975

471

565

660

--

--

1

0.600

0.780

471

565

660

--

1.2

0.500

0.650

471

565

660

--

1.5

0.400

0.520

471

565

660

--

1.8

0.333

0.433

471

565

659

--

2

0.300

0.390

471

565

660

--

2.5

0.240

0.312

471

565

660

--

Note: Other specification marine airbag also can be supplied upon request.

Marine Airbag Picture:

Marine Airbag

Production Equipment:

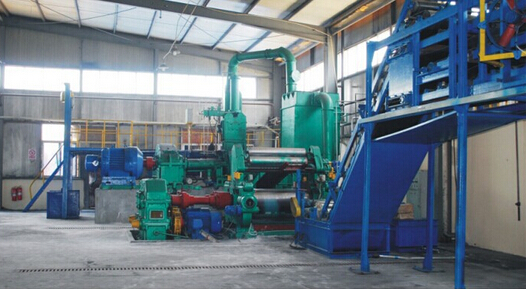

Mixing Workshop

Marine Airbag

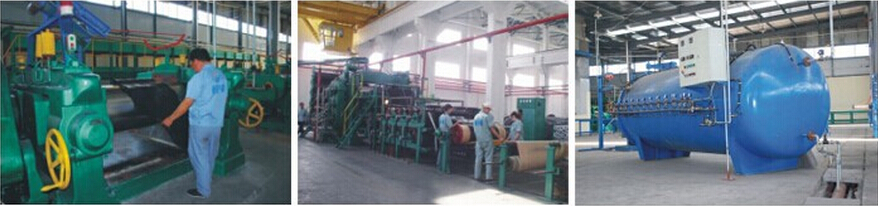

Lian-speed Workshop Lian-opened Workshop Sulfide Tank
