Pre-heat Insulation Tee

[Search Related Products]

Pre-heat insulation Tee

Pre-heat Insulation Tee

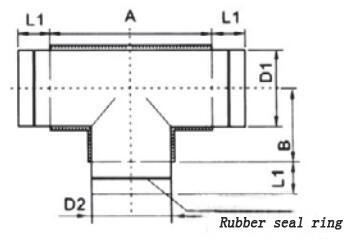

Drawing

Pre-heat Insulation Tee

Main Specification

Specification

A

D1

D2

B

Wgt.°÷kg/piece

PT80/80

150

80

80

70

1.26

PT100/80

150

100

80

80

1.32

PT100/100

165

100

100

80

1.44

PT125/80

150

125

80

90

1.48

PT125/100

165

125

100

90

1.60

PT125/125

200

125

125

90

1.84

PT150/80

150

150

80

105

1.80

PT150/100

165

150

100

105

1.86

PT150/125

200

150

125

105

1.98

PT150/150

220

150

150

105

2.05

PT160/80

150

160

80

109

1.83

PT160/100

165

160

100

109

1.84

PT160/125

200

160

125

109

1.98

PT160/160

250

160

160

109

2.20

PT175/80

150

175

80

115

1.98

PT175/100

165

175

100

115

2.04

PT175/125

200

175

125

115

2.35

PT175/150

250

175

150

115

2.54

PT175/175

250

175

175

115

2.60

PT200/80

150

200

80

140

2.04

PT200/100

165

200

100

140

2.6

PT200/125

200

200

125

140

2.48

PT200/150

250

200

150

140

2.68

PT200/160

250

200

160

140

3.03

PT200175

250

200

175

140

3.28

PT200/200

300

200

200

140

3.57

PT250/80

180

200

20

165

1.81

PT250/100

200

250

100

165

2.13

PT250/125

225

250

125

165

2.36

PT250/160

250

250

160

165

2.81

PT250/200

300

250

200

165

3.28

PT250/250

350

250

250

165

3.97

PT300/100

200

250

100

200

2.50

PT300/125

225

300

125

200

3.00

PT300/160

250

300

160

200

3.50

PT300/200

300

300

200

200

4.10

PT300/250

350

300

250

200

4.76

PT300/300

400

300

300

200

5.81

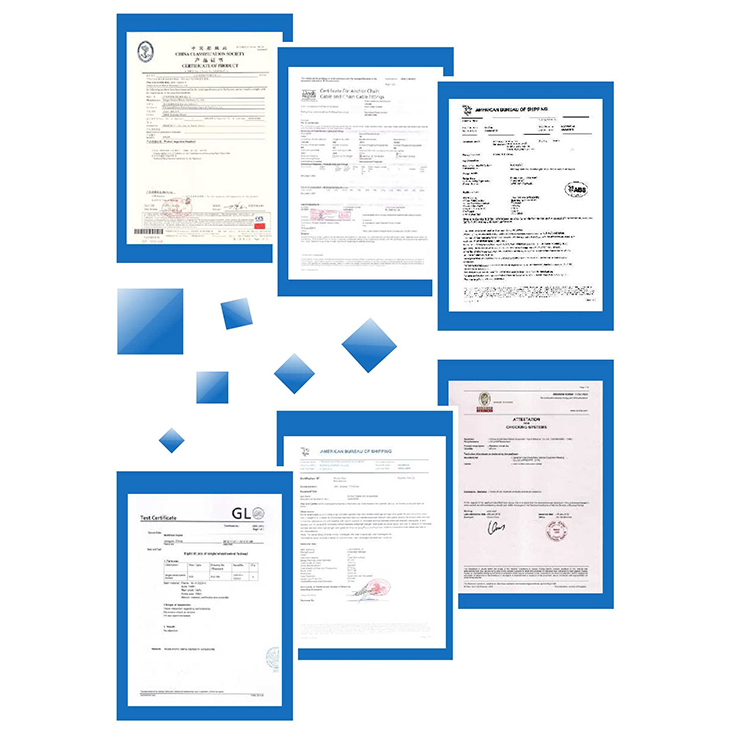

Certification

Pre-heat Insulation Tee
