Non-heat Insulation T-piece

Non-heat Insulation T-piece

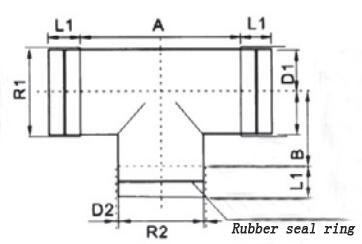

Drawing

Non-heat Insulation T-piece

Main Specification

Specification

A

D1

D2

B

Wgt.°÷kg/piece

T80/80

150

80

80

70

0.52

T100/80

150

100

80

80

0.63

T100/100

165

100

100

80

0.64

T125/80

150

125

80

90

0.69

T125/100

165

125

100

90

0.75

T125/125

200

125

125

90

0.81

T150/80

150

150

80

105

0.84

T150/100

165

150

100

105

0.90

T150/125

200

150

125

105

0.97

T150/150

220

150

150

105

1.40

T160/80

150

160

80

109

0.92

T160/100

165

160

100

109

1.06

T160/125

200

160

125

109

1.37

T160/160

250

160

160

109

1.49

T175/80

150

175

80

115

0.96

T175/100

165

175

100

115

1.08

T175/125

200

175

125

115

1.55

T175/150

250

175

150

115

1.65

T175/175

250

175

175

115

1.78

T200/80

150

200

80

140

1.05

T200/100

165

200

100

140

1.17

T200/125

200

200

125

140

1.23

T200/150

250

200

150

140

1.45

T200/160

250

200

160

140

1.51

T200175

250

200

175

140

2.04

T200/200

300

200

200

140

2.15

T250/80

180

200

20

165

1.31

T250/100

200

250

100

165

1.46

T250/125

225

250

125

165

1.53

T250/160

250

250

160

165

1.88

T250/200

300

250

200

165

2.55

T250/250

350

250

250

165

2.68

T300/100

200

250

100

200

1.75

T300/125

225

300

125

200

1.83

T300/160

250

300

160

200

2.26

T300/200

300

300

200

200

3.06

T300/250

350

300

250

200

3.21

T300/300

400

300

300

200

3.68


Certification
