NO. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Cell |
Housing |
Bolt/Nut |
|
Material |
Stainless Steel
Aluminums Casting |
304 316 316L |
304 316 316L |
304 316 35CrMo |
Oil Tank Flame Arrestor[Search Related Products]
| Installation type | Middle of Pipe |
| Working temperature | <4800C |
| Explosive-proof grade | BS5501:¢òA,¢òB,¢òC |
| Manufacture standard | GB5908,API2000 |
| Flange connection | GB, SH, HGJ, JB, ANSI, DIN, JIS |
| Working pressure | 0.6- 5.0Mpa, 150Lb-600 Lb |

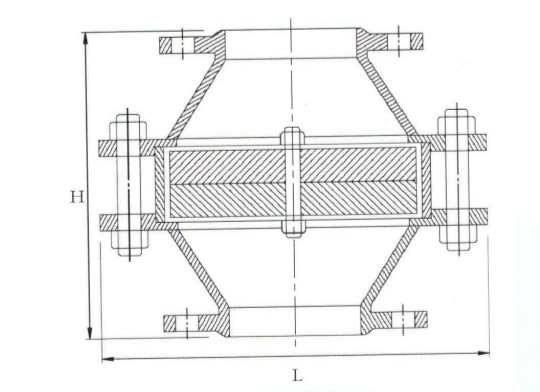

| DN |
50 |
80 |
100 |
150 |
200 |
250 |
| L |
220 |
280 |
325 |
427 |
496 |
593 |
| H |
236 |
270 |
274 |
288 |
306 |
320 |
