Marine Weichai Diesel Genset

Marine Weichai Diesel Genset

Features:

1. Engine brand: Weichai

2. Alternator brand: Marathon (Stamford, Sunvim, Siemens for optional)

3. Application: used for provide auxiliary power and propulsion force for ships

4. Electric starting or air starting

5. Power range: 24KW～300KW

6. Frequency/Voltage: 50Hz/400V

7. Rated speed: 1500RPM

8. CCS, ABS, BV, RS, etc. approved

*Weichai Diesel Genset Technical Data*
Genset Model	Prime power	Rated Voltage	Output frequency	Rated speed	Engine model	Alternator model		Weight
Genset Model	Prime power	Rated Voltage	Output frequency	Rated speed	Engine model	Marathon	Stamford	Weight
CCFJ24JW	24KW	400V	50Hz	1500RPM	D226B-3CD	MP-H-24-4	PM144H	1130kgs
CCFJ30JW	30 KW	400V	50Hz	1500RPM	TD226B-3CD	MP-H-30-4	PM144K	1150kgs
CCFJ50JW	50 KW	400V	50Hz	1500RPM	WP4CD66E200	MP-H-50-4	UCM224F	1250kgs
CCFJ75JW	75 KW	400V	50Hz	1500RPM	WP4CD100E200	MP-H-64-4	UCM274D	1350kgs
CCFJ100JW	100 KW	400V	50Hz	1500RPM	WP6CD132E200	MP-H-75-4	UCM274E	1640kgs
CCFJ120JW	120 KW	400V	50Hz	1500RPM	WP6CD152E200	MP-H-90-4	UCM274G	1650kgs
CCFJ150JW	150 KW	400V	50Hz	1500RPM	WP10CD200E200	MP-H-100-4	UCM274J	1950kgs
CCFJ180JW	180 KW	400V	50Hz	1500RPM	WP10CD238E200	MP-H-180-4	UCM274K	1980kgs
CCFJ200JW	200 KW	400V	50Hz	1500RPM	WP10CD264E200	MP-H-200-4	HCM434D	2100kgs
CCFJ250JW	250 KW	400V	50Hz	1500RPM	WP12CD317E200	MP-H-250-4	HCM434E	2180kgs
CCFJ300JW	300 KW	400V	50Hz	1500RPM	WP13CD385E200	MP-H-300-4	HCM534C	2300kgs

Product displaying:

Marine Weichai Diesel Genset

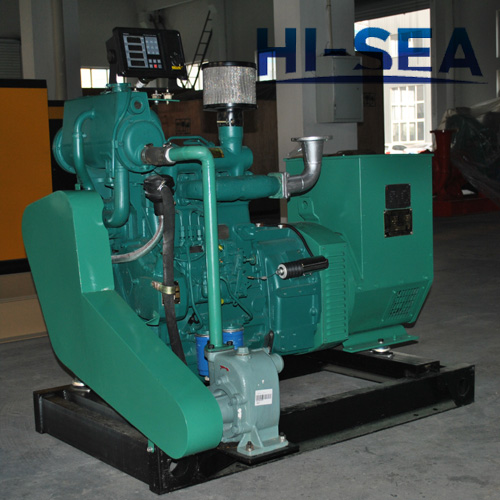

Marine Weichai Diesel Generating Set (24KW)

Marine Weichai Backup Generator Set (50KW)

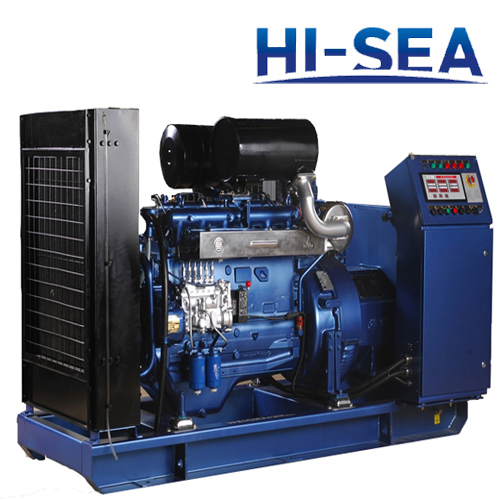

Marine Weichai Emergency Genset (75KW)
