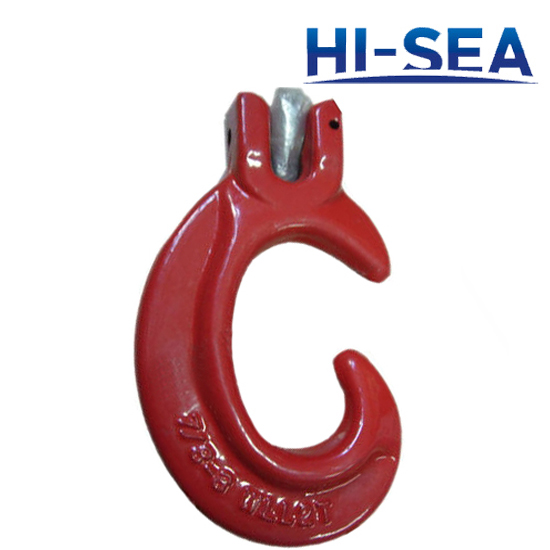

G80 Special Clevis C Hook

[Search Related Products]

G80 Special Clevis C Hook

G80 Special Clevis C Hook

Clevis C hooks are simple to assemble with chains without any intermediate coupling-links. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product details:

1. Item: G80 special clevis C hook

2. Grade: 80

3. Material: high alloy steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated or self color

6. WLL: 2T-8T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 7/8mm-16mm

10.Special specifications and marks can be made according to customers requirement

Specification

Chain Size(mm)

Weight(KG)

WLL(T)

B.L(T)

A(mm)

B(mm)

E(mm)

L(mm)

7/8

0.57

2

8

9.5

35

20

136

10

1.4

3.15

12.6

13

46

29.5

189

13

3

5.3

21.1

16.5

59

39.5

246

16

5.4

8

32

18.5

72

46.5

298

G80 Special Clevis C Hook

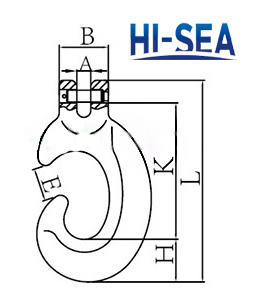

Sketch of the G80 special clevis C hook

G80 Special Clevis C Hook

G80 Special Clevis C Hook
