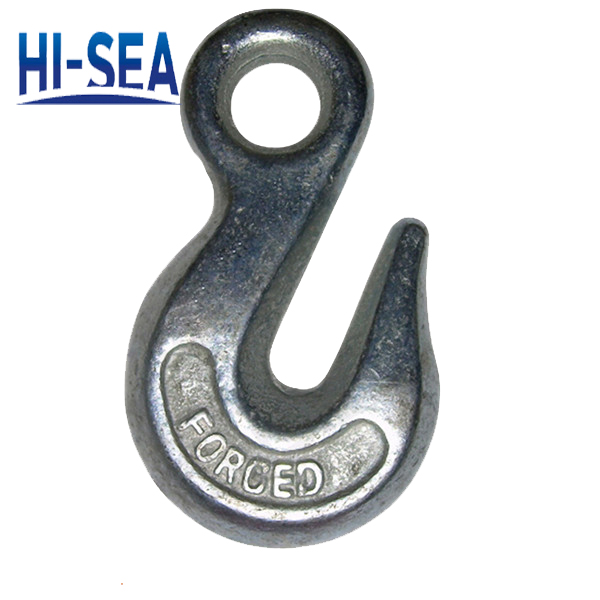

Eye Grab Hook H/A 323

Eye Grab Hook H/A 323

Eye grab hook H/A 323 drop forged by high quality carbon steel and alloy steel with hot dip galvanizing on the surface. It has the advantages of small volume, light weight and high strength. The maximum test load is 2 times of work load, and the minimum break load is 4 times of work load. It can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

product details:

1. Item: Eye Grab Hook H/A 323

2. Type: US type

3. Grade: 80

4. Material: high alloy steel or carbon steel

5. Technology: drop forged

6. Surface: hot dip galvanized, zinc plated or self color

7. WLL: 1.2T-31.5T

8. Breaking load: 4 times of working load

9. Usage: lifting, rigging

10. Size: 1/4"mm-3/4"mm

11.Special specifications and marks can be made according to customers requirement

Specification:

Size N.W. W.L.L.(LBS) R ŽÁ E
IN LBS H-323 A-323 MM MM MM
1/4' 0.28 2600 3600 50.5 13 9
5/16' 0.45 3900 5400 56.8 14 11.5
3/8' 0.79 5400 7500 65.2 17 13
7/16' 1.19 7200 10000 74.7 19 15.5
1/2' 1.8 9200 12750 85.5 22 17
5/8' 3.3 12750 19000 116 30 21
3/4' 6 18500 27000 133.5 35 25
Eye Grab Hook H/A 323

Sketch of the eye grab hook H/A 323

Eye Grab Hook H/A 323

Eye grab hook H/A 323
