Diesel Engine Driven Tunnel Thruster

Diesel Engine Driven Tunnel Thruster

Tunnel thrusters are used to develop lateral thrust under extreme load conditions in demanding offshore applications for dynamic positioning or for slow speed maneuvering of marine vessels and are available from 20 KW up to 3000 KW with propeller diameters from 600mm up to 3000mm. Made with fixed pitch propeller (FPP) or controllable pitch propeller (CPP), our tunnel thrusters are designed for diesel engine driven in the L-Drive configuration or Z-Drive configuration. Many sizes are available in the following table. If you can’t find what you want, please send us your drawing or sample. We will design and manufacture the product according to your requirements.

Features:

1. Drive force: diesel engine

2. Propeller type: FPP & CPP

3. Propeller diameter: 600mm to 3000mm

4. Power range: 20KW to 3000KW

5. Advantages: superior strength, less noise, easy installation

6. Certification: ABS, BV, DNV, NK, CCS, KR, RINA, GL, etc.

Model	Propeller diameter (mm)	Power (KW)	Max thrust (KN)	Propeller type
TT60	600	20~75	16	FPP
TT90	900	75~210	33	FPP
TT110	1100	200~330	46	FPP & CPP
TT130	1300	310~470	66	FPP & CPP
TT165	1650	450~760	108	FPP & CPP
TT185	1850	720~1020	132	FPP & CPP
TT200	2000	980~1270	165	FPP & CPP
TT225	2250	1200~1550	235	FPP & CPP
TT250	2500	1450~2100	326	FPP & CPP
TT275	2750	2060~2480	378	FPP & CPP
TT300	3000	2300~2930	462	FPP & CPP

Product showing:

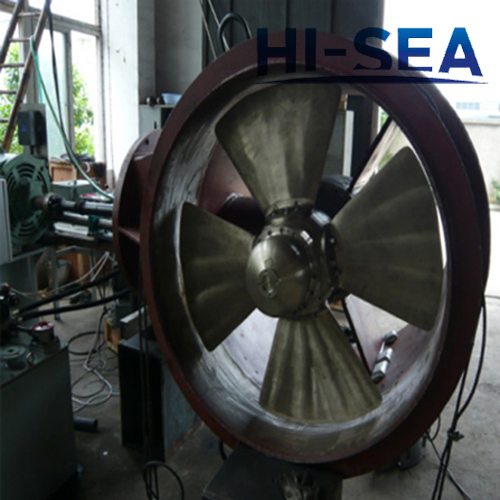

Diesel Engine Driven Tunnel Thruster

Marine Diesel Engine Driven Tunnel Thruster
