Ballast Water Treatment System

Ballast Water Treatment System Description

1. Brightsky Electronic has the complete intellectual property right about BSKYTM BWMS such as America, European Union, Japan, Korea and China patent.
2. EPT£¨Enhanced Physical Treatment£© technology clearly show the best performance in Ballast Water Management with low power consumption.
3. Hydrocyclone prefilter has strong separating performance in sediments especially sand and maintenance free filter, which can avoid clogging and also no need to replace filter.
4. EPT£¨Enhanced Physical Treatment£©technology will not bring any potential risks to environment, ships and crew. Modular design concept of BSKYTM BWMS provides huge flexibility and space saving for engine room or pump room installation.
5. EPT£¨Enhanced Physical Treatment£© technology have great biological effectiveness, so it can meet not only IMO D-2 requirements but California & New York standards.
6. At the same time, we have developed a full series of products with explosion-proof functions from 100m3~6000m3,which can be applied to different type of ships.
7. Intelligent control system always monitors the running status of BSKYTM BWMS and it will help ship crew easy to operate the BWMS.

Ballast Water Treatment System

Ballast Water Treatment System Hydrocyclone -- The most suitable for ship ballast water treatment filter technology

1. Revolutionary solid-liquid separation device, super strong filtering capability of sediment;
2. Filter out more than 98% or greater 50 microns plankton and particulate matter;
3. Free from electric power consumption & maintenance;
4. Free from cleaning & replacement of filter element.

Ballast Water Treatment System

Ballast Water Treatment System UV -- Proven & Chemical Free Technology

1. Uniform flow, constant dose design become the most mature and reliable physical sterilization technology does not change with water salinity and turbidity and impact the sterilization effect;
2. No by-products generated, does not produce secondary pollution;
3. Lamp is easy to replace and automatic cleaning device, crushing plant, attenuation and life monitoring alarm device.

Ballast Water Treatment System

A variety of operation mode, meet the complex conditions of ballast and discharge operation of the ship

1. BSKYTM BWMS has the exclusive EPT technology, which can provide the most economical designed ballast water management system for every ship.
2. EPT treatment makes all the sediments back to their earlier place when ballast and disinfect all microorganisms.
3. After EPT treatment, the water will enter ballast tank. During a long time voyage, the microorganisms and bacteria will grow again in ballast tank by contamination, so BSKYTM BWMS treat again when discharge in the destination port to meet the requirements for PSC inspection.

Ballast Water Treatment System

Ballast Water Treatment System Technical Specification

Model

Capacity [m3/h]

Power [Kw]

Outline Size[m3]

Weight[Kg]

BSKY 150

150

7.3-7.9

1.6¡Á1.1¡Á1.7 | 1.8

1,250

BSKY 250

250

10.6-11.6

1.9¡Á1.3¡Á2.1 | 2.4

1,500

BSKY 500

500

13.9-15.1

2.9¡Á1.4¡Á2.2 | 4.2

2,600

BSKY 1000

1000

27.9-30.3

4.2¡Á1.5¡Á2.6 | 6.3

4,390

BSKY 3000

3000

83.7-90.0

4.2¡Á6.1¡Á2.6 | 25.7

13,170

Besides, we also can supply below models:

BSKY 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 600 / 700 /800 / 900 /1000 / 1100 / 1200 / 1300 / 1400 / 1500 / 2000 / 3000 / 4000 / 5000 / 6000

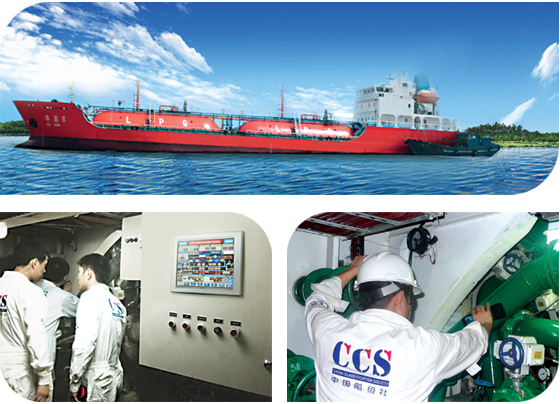

Ballast Water Treatment System Application

Ballast Water Treatment System

Ballast Water Treatment System
