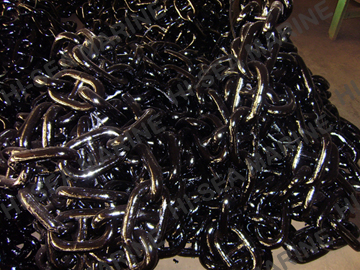

Stud Link Anchor Chain

Stud Link Anchor Chain

Marine anchor chains are divided into two types - stud link anchor chain and studless link anchor chains. Compared with the studless link anchor chain, the stud link anchor chain has larger tensile strength, smaller deformation when being under stress and not easily get entangled when being piled up.

Product Detail

1. Chain Diameter: 12.5mm to 162mm

2. Grade&Material: U2-CM490; U3-CM690

3. Surface: Self-colored, Black Painted, or Hot Dip Galvanized as requested

4. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.

5. Application: used for various ships

Stud Link Anchor Chain

Stud Link Anchor Chain

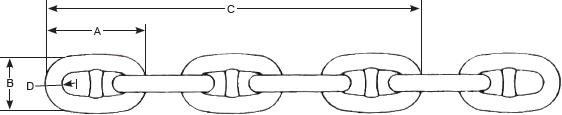

Specifications

Diamter

CHAIN LINK SIZE

AM2

AM3

APPROX.

U2 STUD LINK CHAIN

U3 STUD LINK CHAIN

WEIGHT

OUTSIDE

OUTSIDE

PROOF

BREAKING

PROOF

BREAKING

27.5M

LENGTH

WIDTH

LOAD

LOAD

LOAD

LOAD

MM

MM

MM

KN

KN

KN

KN

KG

12.5

75

45

66

92

92

132

98

14

84

50.4

82

116

116

165

119

16

96

57.6

107

150

150

216

156

17.5

105

63

127

179

179

256

186

19

114

68.4

150

211

211

301

230

20.5

123

73.8

175

244

244

349

260

22

132

79.2

200

280

280

401

300

24

144

86.4

237

332

332

476

370

26

156

93.6

278

389

389

556

431

28

168

100.8

321

449

449

642

496

30

180

108

368

514

514

735

564

32

192

115.2

417

583

583

833

635

34

204

122.4

468

655

655

937

712

36

216

129.6

523

732

732

1050

800

38

228

136.8

581

812

812

1160

887

40

240

144

640

896

896

1280

1032

42

252

151.2

703

981

981

1400

1084

44

264

158.4

769

1080

1080

1540

1197

46

276

165.6

837

1170

1170

1680

1310

48

288

172.8

908

1270

1270

1810

1438

50

300

180

981

1370

1370

1960

1546

52

312

187.2

1060

1480

1480

2110

1661

54

324

194.4

1140

1590

1590

2270

1791

56

336

201.6

1220

1710

1710

2430

1926

58

348

208.8

1290

1810

1810

2600

2086

60

360

216

1380

1940

1940

2770

2249

62

372

223.2

1470

2060

2060

2940

2361

64

384

230.4

1560

2190

2190

3130

2516

66

396

237.6

1660

2310

2310

3300

2676

68

408

244.8

1750

2450

2450

3500

2885

70

420

252

1840

2580

2580

3690

3010



Stud Link Anchor Chain

Joining Forms For Kenter Shackle(K.S.)

Stud Link Anchor Chain

Joining Forms For 'D' Joining Shackle (J.S.)

Stud Link Anchor Chain

Stud Link Anchor Chain
