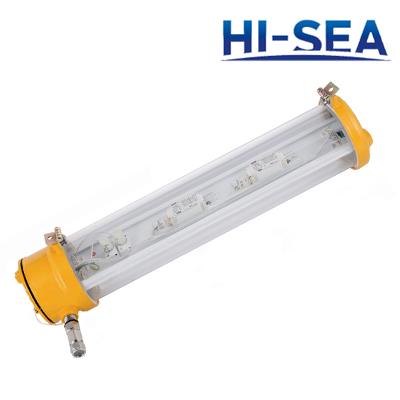

Stainless Steel Marine Explosion-proof Fluorescent Light

[Search Related Products]
Stainless Steel Marine Explosion-proof Fluorescent Light

Stainless Steel Explosion-proof Fluorescent Pendant Light

Stainless steel marine explosion-proof light adopts hang-type installation, and the light tube is convenient to be replaced. The lampshade is made of high quality PC material. It is adopts seal structure, which make it has good waterproof performance and anticorrosion performance. It conforms to GRADE ENTRY NORMS FOR STEEL SHIPS and the national standard GB3836-2000, GB12045, En50014, En50018, En60079.

Product Details:

1. Type: CFY20/30/40

2. Explosion-proof mark: ExdCT6

3. Voltage: 220V/50HZ, 220V/60HZ, 110V/60HZ

4. Light Source:Fluorescent

5. Lampholder: G13

6. Material: Stainless steel and PC

7. Protection Class: IP56

8. Weight: 11.5kg, 13.5kg, 15kg

9. Cable outside diameter: 13-14

Specification:

Type

Voltage

Power

Lamp holder

Weight

CFY20-2

220V/50HZ 220V/60HZ 110V/60HZ

2*20W

G13

11.5kg

CFY20-1

1*20W

CFY30-2

2*30W

13.5kg

CFY30-1

1*30W

CFY40-2

2*40W

15kg

CFY40-1 1*40W
Stainless Steel Marine Explosion-proof Fluorescent Light

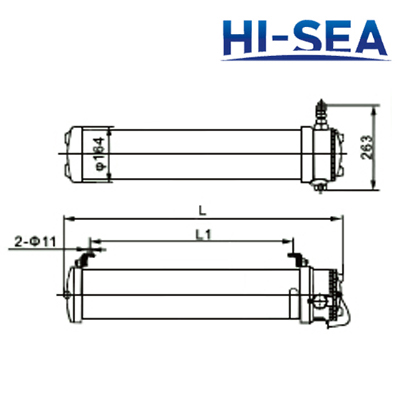

Sketch of Explosion-proof Fluorescent Light CFY20

Stainless Steel Marine Explosion-proof Fluorescent Light

Stainless Steel Marine Explosion-proof Fluorescent Light
