Spiral Tube Pressure Gauge

[Search Related Products]

Spiral Tube Pressure Gauge

Spiral Tube Pressure Gauge

Spiral Tube Pressure Gauge is Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks, regulators, pumps, medical oxygen equipment, fire extinguishers and portable cylinder.

Product Details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Windows:Plexiglas

Temperature range:-40C~+65C.

Pressure: 0-2.5MPa

Advantage: Anti-aging, excellent corrosion resistance, long life, easy installation

Quality: High quality

Features:

1.reliable, small diameter, low profile gauge

2.Safety over-pressure on the lens

3.Use no oil for use in oxygen service

4.Direct drive (no linkages,gearing,hairsprings or bearings) eliminating premature failure from the gear and movement

Technical Parameters:

Product name

Diaphragm Pipe Pressure Gauge for Fire Extinguisher

Diameter

1(25mm)

1.125 (35mm)

1.25(36.7mm)

1.5(40mm)

Pressure range

0-2.5MPa

Over pressure limit

10 of full scale value

Movement

Brass

Working pressure

Max. 75 of full scale value

Connection

1/8NPT, back connection(option:1/4 NPT)

Accuracy

4 F.S.

Window

Plexiglas

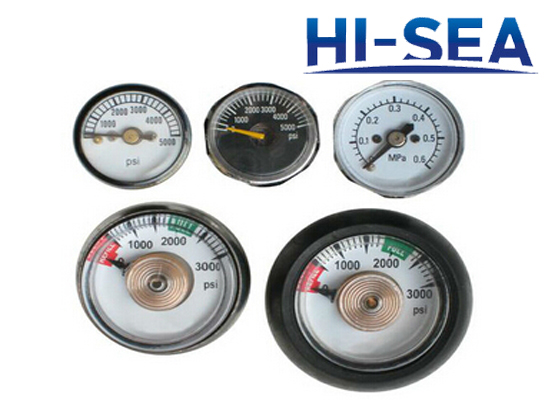

Product Picture:

Spiral Tube Pressure Gauge
