Pressure Gauge on Fire Extinguisher

Pressure Gauge on Fire Extinguisher

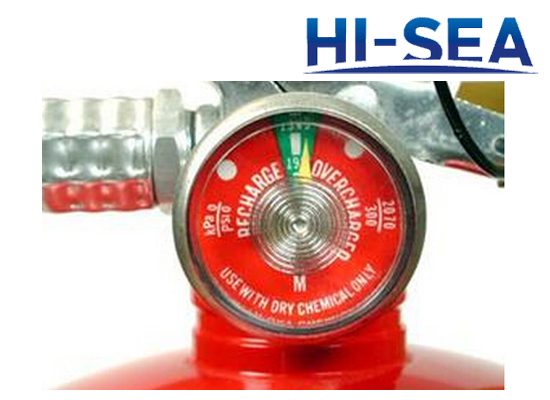

Pressure gauge on the fire extinguisher is mounted on the powder fire extinguisher,the working pressure for fire extinguisher is 1.2MPa. the range of pressure gauge on the fire extinguisher is 0-2.5MPa,the temperature range is -20°C~+55°C.

Product Details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Windows: Glass or Acrylic

Temperature range:-20°C~+55°C.

Pressure: 0-2.5MPa

Advantage: Anti-aging, excellent corrosion resistance, long life, easy installation

Quality: exceptional quality

Application:

1. Outdoor and severe ambient and process conditions

2. Use where harmful vibration and pulsation are present

3. Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems

Technical Parameters:

Product name	Pressure Gauge on Fire Extinguisher
Dials size	1.5”(40mm)	2”(50mm)	2.5”(63mm)	4”(100mm)	6”(150mm)
Connection size	1/8	1/4	1/4	3/8	1/2
Accuracy	±2.5％	±2.5％	±2.5％	±1.6％	±1.6％
Case	Black steel, ABS, chrome plated
Pressure range	0-2.5MPa
Ring	Non, Black steel, chrome plated
Movement	Brass
Socket	Brass
Dial plate and pointer	Aluminum
Window	Glass or plastic
Connection thread	Metric thread, NPT, BSP(G, PF), BSPT(ZG, PT)
Mounting	Bottom,back, panel

Pressure Gauge on Fire Extinguisher

The advantage of our company:

1. Advanced Equipment and professional technology: we are committed to offer the good quality gauges with advanced equipment and professional technology for all over the world customers.

2. Best Service: our company provide best service all the time, for our goal is a long trade cooperation term.

3. Serious inspection Procedure with Excellent Quality: our pressure gauge all are 100‰ inspection, we also have passed ISO9001 and UL certificated.

4. Quickly Delivery: our company provides in-time delivery with, always satisfy customers needs

5. Convenient Purchase: we have more than ten years’ experience in the field, so it’s convenient for you to purchase, we can provide our high quality products with reasonable price.

6. OEM Orders: we could provide OEM service to meet customers special requirements.

Production Process:

1. Welding→ Riveting→ Dipping Sealing→ Laser Welding→ Over-pressure Testing→ Press Testing→ Assembling→ Low Press Adjusting→ Adjusting(High Press)→ Adjusting(Program)→ Assembling 2→ Oil Dipping(As Needed)→ Final Press Testing)→ Packing

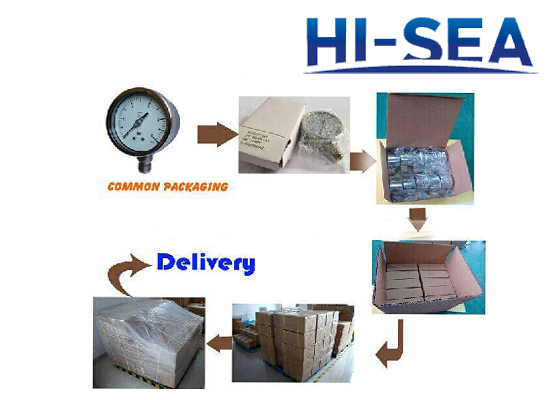

Packing and Shipping
