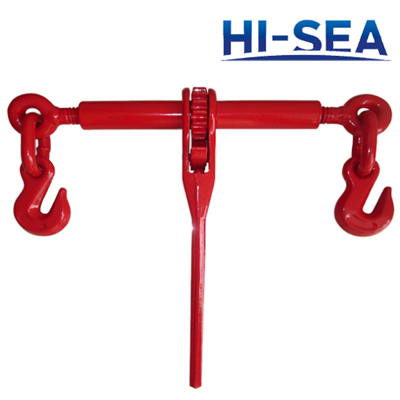

Ratchet Type Load Binder

Ratchet Type Load Binder

Ratchet type load binder is used to tighten the steel chains around the loads. It can protect objects from falling off and damaging. Beside that, it has advantages of safety, reliability, high working efficiency and easy to operate. And we can provide it with sufficient supply, fast delivery time and complete specification.

Product Details:

1. Model: Ratchet type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type, European type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-13000lbs

7. Weight: 3.52lbs-14.38lbs

8. Usage: Port, metallurgy, ship building, electricity,etc.

9. Packaging: Carton then on steel pallet

10. Special specification and marks can be made according to order quantity

Specification：

Chain Size

WLL

B.L.

Weight

A

B

D

E

E1

F

G

in

lbs

lbs

lbs

mm

mm

mm

mm

mm

mm

mm

1/4-5/16

2200

7800

3.52

7.16

0.89

1.77

16.22

21.26

17.79

0.35

5/16-3/8

5400

19000

10.5

13.9

1.3

2.6

22.64

30.64

25.24

0.51

3/8-1/2

9200

33000

12.9

13.9

1.3

2.6

24.13

32.13

27.04

0.59

1/2-5/8

13000

46000

14.38

13.9

1.3

2.6

26.45

34.45

30.07

0.74

Ratchet Type Load Binder

Sketch of ratchet type load binder

Ratchet Type Load Binder

Ratchet Type Load Binder

Chain Size	WLL	B.L.	Weight	A	B	D	E	E1	F	G
in	lbs	lbs	lbs	mm	mm	mm	mm	mm	mm	mm
1/4-5/16	2200	7800	3.52	7.16	0.89	1.77	16.22	21.26	17.79	0.35
5/16-3/8	5400	19000	10.5	13.9	1.3	2.6	22.64	30.64	25.24	0.51
3/8-1/2	9200	33000	12.9	13.9	1.3	2.6	24.13	32.13	27.04	0.59
1/2-5/8	13000	46000	14.38	13.9	1.3	2.6	26.45	34.45	30.07	0.74

Load Binder

Ratchet Type Load Binder
