European Type Ratchet Load Binder

European Type Ratchet Load Binder

European type ratchet load binder is safe and reliable. It can protect objects from falling off and damaging. Compared with other tension methods, it is easier to be operated, and the work efficiency of it is higher.

Product Detailsú║

1. Model: European type ratchet load binder

2. Material: Carbon steel, melleable iron

3. Standard: European type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. WLL: 2200lbs-24000lbs

7. Weight: 3.52kg-19kg

8. Packaging: Carton then on steel pallet

9. Special specification and marks can be made according to customerí»s requirements.

Specification:

Chain Size

WLL

Breaking Load

Weight

A

B

C

E

E1

F

F1

G

mm

lbs

lbs

lbs

mm

mm

mm

mm

mm

mm

mm

mm

6

2200

7800

3.52

7.16

0.89

1.77

17.4

22.04

19.2

23.84

0.35

8

5400

19000

10.5

13.92

1.3

2.6

23.78

31.78

26.14

34.14

0.47

10

9200

33000

12.2

13.92

1.3

2.6

23.82

31.82

26.93

34.93

0.63

13

13000

46000

14.38

13.92

1.3

2.6

25.9

33.9

29.57

34.57

0.72

16

24000

72000

19

13.92

1.3

2.6

26.5

34.8

31.6

39.9

0.92

European Type Ratchet Load Binder

Sketch of European type ratchet load binder

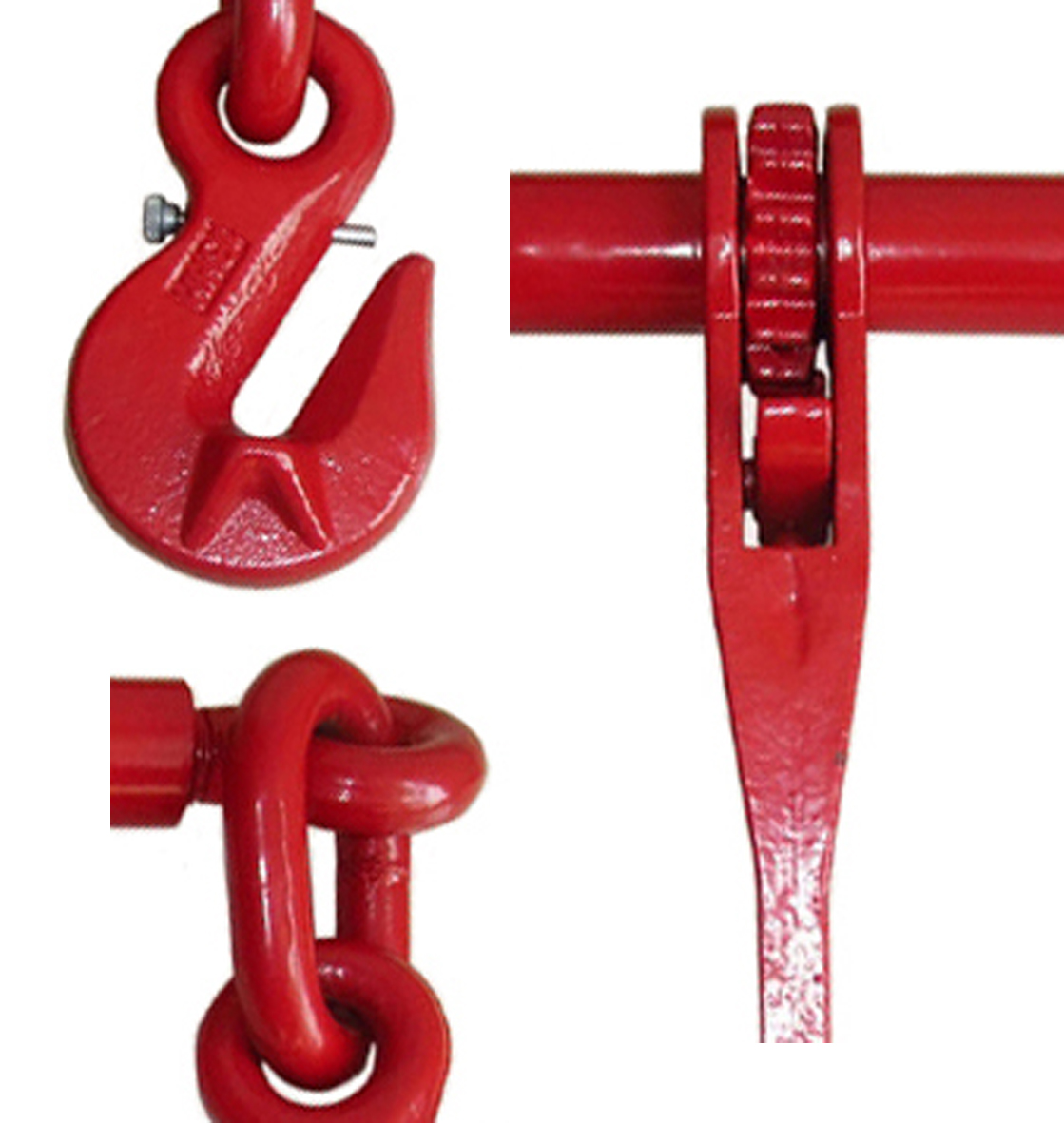

European Type Ratchet Load Binder

Product Details
