Oblique Angle Snap Hook With Eye

Oblique Angle Snap Hook With Eye

Oblique angle snap hook with eye is more solid than the snap hook without it. Because it is more convinient to link the connection. So it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment. Especially in the process of using stainless steel wire rope, if the length of it is not enough, we can use snap hooks to cannect.

Product details:

1. Item: Oblique angle snap hook with eye

2. Material: stainless steel

3. Technology: drop forged

4. Surface:polished, zinc plated

5. Size:6*60mm-11*120mm

6. Usage: lifting industry

7. Breaking load: 4 times of working load

8. Special specifications and marks can be made according to customers requirement

Specification

Size

C

D

E

L

N.W.

mm

mm

mm

mm

mm

kg/100pcs

6*60

6

6

10

60

3

8*80

8

8

13

80

7

10*100

10

10

18

100

14

11*120

14

12

24

120

21.4

Oblique Angle Snap Hook With Eye

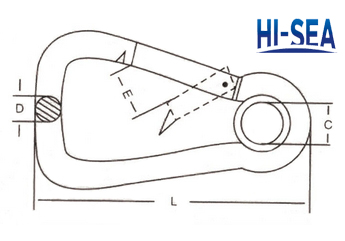

Sketch of the oblique angle snap hook with eye

Oblique Angle Snap Hook With Eye

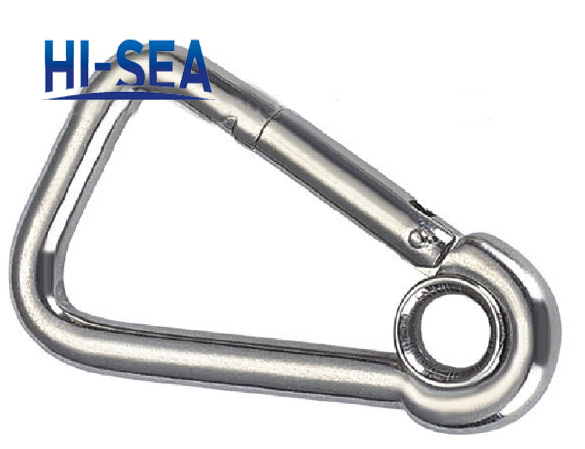

Oblique angle snap hook with eye
