Motor Hydraulic Steel Scrap Grab
Motor hydraulic steel scrap grab has hydraulic system itself, and the hydraulic system is imported from European and USA. It used constant output pump and servo system. The flow of pump can change by itself according to pressure. When pressure reaches maximum, pump flow is almost zero, so it can reduce the overflow very much, and reduce temperature rise of oil.
Product Details:
1. Compact Structure with Built-in Hydraulic System
2. Powered by a Electric Motor of High Performance
3. Remote Control or Switch hooked to the Electric Circuit.
4. Assembly and commissioning by SHYP's specialist technicians;
5. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
|
Rated Capacity |
Volume |
Dead Weight |
Power Supply(KW) |
Open and Close Time |
A |
B |
C |
D |
|
|
T |
m³ |
T |
380V 50HZ |
440V 60HZ |
S |
mm |
mm |
mm |
mm |
|
5 |
1 |
2.15 |
15 |
18.5 |
17 |
1786 |
2784 |
3050 |
2860 |
|
8 |
1.5 |
3.4 |
18.5 |
21 |
20 |
1925 |
3448 |
3141 |
2749 |
|
10 |
2 |
4.3 |
22 |
26 |
16 |
2241 |
3565 |
3214 |
2876 |
|
16 |
3.2 |
5.7 |
37 |
43 |
18 |
2450 |
4180 |
3205 |
2694 |
|
20 |
4 |
7.2 |
37 |
43 |
25 |
2840 |
4505 |
3850 |
3282 |
|
25 |
5 |
9.2 |
45 |
52 |
22 |
3020 |
4787 |
4165 |
3663 |
|
30 |
6.5 |
10.2 |
45 |
52 |
25 |
3070 |
5200 |
4230 |
3700 |
|
40 |
8 |
11.5 |
52 |
55 |
25 |
3455 |
5406 |
4490 |
3850 |

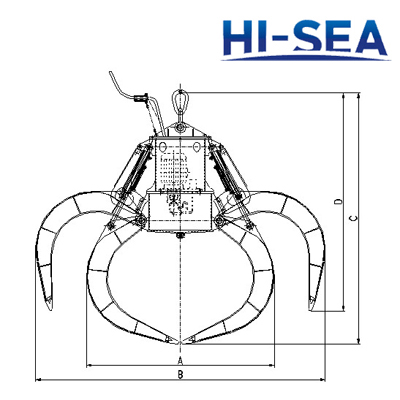

Sketch of the motor hydraulic steel scrap grab
