Mooring Cable Reel CB*875-78
CB*875-78 bond cable reel is used to store ship grounding cables. It has three types: Type A cable reel with electric current loop, Type B handle type cable reel; Type C hand wheel cable reel. Different types suit for different sizes of cables.
All our products are produced according to the shipbuilding industrial standard. We not only supply standard products but also supply customized products to meet customer¡¯s special requirements.
If you want to know more specific information about our products, please feel free to contact us.
Features of Bond Cable Reel CB*875-78
1. Used to Store Ship Shore Cables;
2. Standard: CB*875-1978
3. Model Type: A28, B16, B22,C36,C44;
4. Cable Diameter:27.6~44mm;
5. Max. Length of Cable: 150~230mm;
6. Smooth and Clean Surface without Burrs, Cracks or Any Defects;
7. Reel Can be Fixed with the pedestal by Bolts or Be Fixed by Welding;
8. Lubricated, Anti-corrosive Paint;
9. Certificate: CCS,ABS, BV, DNV, NK etc.;
10. Meet Customer¡¯s Special Requirements
CB*875-78 Bond Cable Reel Types and Basic Parameters
|
Type |
Name |
Model |
Applicable Cable |
Note |
|
|
Cable Diameter(mm) |
Max. Length of Cable(L)m |
||||
|
A |
Cable Reel with Electric Current Loop |
A28 |
27.6 |
150 |
CHFR Cable 3¡Á25 50A below |
|
B |
Handle Type Cable Reel |
B16 |
12.7 |
125 |
|
|
16 |
100 |
|
|||
|
B22 |
20.3 |
200 |
|
||
|
22.6 |
180 |
|
|||
|
C |
Hand Wheel Type Cable Reel |
C36 |
28 |
220 |
|
|
36 |
180 |
|
|||
|
C44 |
38 |
230 |
|
||
|
44 |
200 |
|
|||

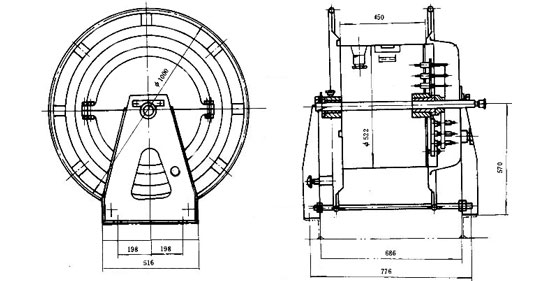

Drawing of Bond Cable Reel CB*875-78 Type A
Drawing of Bond Cable Reel CB*875-78 Type B
|
Model Type |
Cable Diameter(mm) |
D |
D1 |
D2 |
L |
L1 |
L2 |
H |
H1 |
B |
Weight(kg) |
|
B16 |
12.7~16 |
150 |
300 |
400 |
380 |
437 |
517 |
250 |
450 |
350 |
25 |
|
B22 |
20.3~22 |
150 |
320 |
550 |
490 |
559 |
639 |
329 |
604 |
450 |
30.5 |

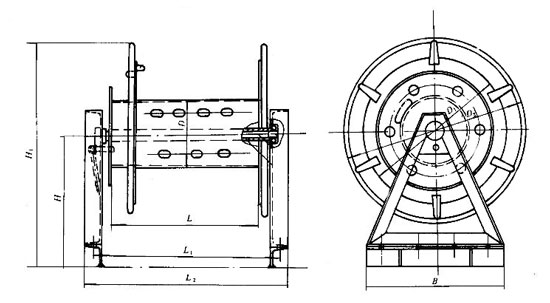

Drawing of Bond Cable Reel CB*875-78 Type C
|
Model Type |
Cable Diameter(mm) |
D |
D1 |
D2 |
L |
L1 |
L2 |
H |
H1 |
B |
Weight(kg) |
|
C36 |
28~36 |
300 |
680 |
860 |
809 |
951 |
1017 |
555 |
985 |
700 |
130 |
|
C44 |
38~44 |
350 |
840 |
1020 |
924 |
1066 |
1132 |
625 |
1135 |
750 |
194 |
