Marine Prefabricated Sanitary Unit

Marine Prefabricated Sanitary Unit

Hi-sea marine prefabricated sanitary unit is composed of wall panel,ceiling panel,bottom plate,hardware,sanitary ware,lighting and water and electricity system.It is an independent and multi-function unit which has the functions of washing the face,showering and WC in a limited space.

As the decorative materials for the ships,our overall sanitary unit is widely used in various cabins in the letter,such as luxury cruise ships,maritime hotel,ferries,oil platforms,cargo ships,etc.It also can be used for land-based hotels,apartments and container mobile homes,etc.High-grade design,fabrication and installation bring economical and comfortable bath health space.Its design completely conforms to the ISO standard, IMO standard, and the requirements of various Classification Societies,such as CCS,LR,GL,ABS,KR,DNV,NK,EC,etc.

Characteristics of marine prefabricated overall sanitary unit:

Personalized overall design,factory production

Excellent structure,flexible configuration,environmental protection and safety,thermal insulation,easy to clean

Efficient installation,shorten the construction cycle

Material are various,such as steel plate,stainless steel ,aluminum,GRP,mosaic floor,epoxy floor,PVC,ceramic tile floor,etc.

Note:The size of Hi-sea marine prefabricated sanitary unit can be customized according to clients¡¯ special requirements.For any more information,please feel free to contact us directly.

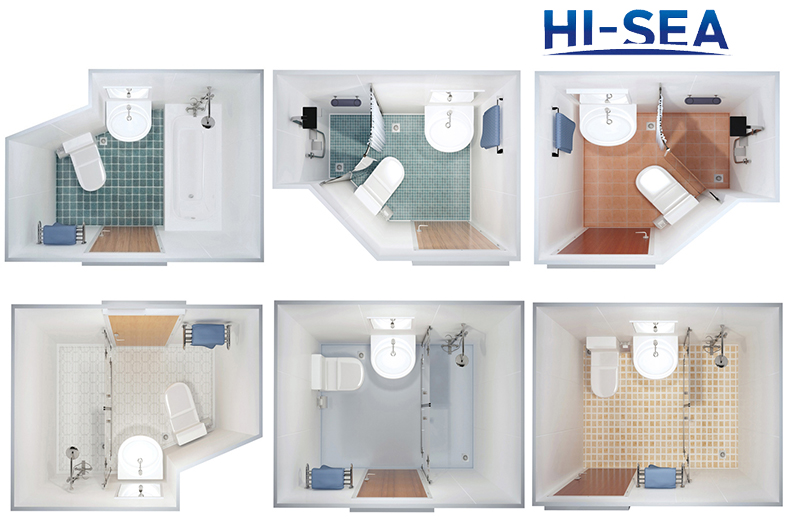

Examples of standard type are as follows:£¨Type A Type B Type C Type D Type E Type F£©

Marine Prefabricated Sanitary Unit

Bottom plate types are as follows:Marine Prefabricated Sanitary UnitMarine Prefabricated Sanitary Unit

Use the stainless steel bar to separate the shower area,the floor surface slightly tilts to the floor drain direction.

Shower area sinks, the floor surface slightly tilts to the shower area direction.

Hoisting Diagram:

Marine Prefabricated Sanitary Unit

Hoisting is convenient, safe and reliable,use wire rope hook to hook the four rings of sanitary unit.balanced lifting,fall steadily to installation location.
According to the different chassis types, A and B two different hoisting methods can be chosen.

Circuit Principle Diagram:

Marine Prefabricated Sanitary Unit

The circuit diagram is only for reference.Do change according to choosing different appliances.The circuit between the electric appliances adopt the parallel way.Use the high quality insulation cable to connect.Use the cable card to fix the cable on the metal panel.

Angle Supporter Joint:

Marine Prefabricated Sanitary Unit

Angle supporter structure is simple and firm, convenient adjustment.Adjust the chassis height,after using a wrench to loose and tighten adjusting bolt to proper position,weld on deck.

Interior Scene View of Marine Sanitary Unit: The sanitary unit items can be offered according to clients' requests.

Marine Prefabricated Sanitary Unit

Interior Scene View of Marine Sanitary Unit(1)

Marine Prefabricated Sanitary Unit

Interior Scene View of Marine Sanitary Unit(2)

Certificates:Marine Prefabricated Sanitary Unit
