Marine Medium Pressure Air Cooling Air Compressor CZF-33

[Search Related Products]

Marine Medium Pressure Air Cooling Air Compressor CZF-33

Marine Medium Pressure Air Cooling Air Compressor CZF-33

CZF-33 marine air compressor is widely used for starting the engine of all kinds of ships.It The displacement capacity is 14.5~22m3/h.The weight is 160~180kg.It is a kind of medium pressure air cooling air compressor.Belt type and direct connection type are available.

HI-SEA has professional technology and equipment.The design and manufacture conforms to the standard of ISO,IMO and various classification Societies.Therefore,various marine air compressors are available,such as marine low pressure air-cooled air compressor,marine medium pressure air-cooled air compressor,marine medium pressure water-cooled air compressor,etc.

Our marine air compressors can be available according to clients¡¯ specific requests.For more information,please feel free to contact us.We will offer you quick and satisfactory service.

Main Technical Specifications:



Model

Type

Displacement capacity

m3/h

Specified Pressure

MPa

Rotating Speed

r/min

Motor Power

kw

Weight

kg


Dimension£¨L¡ÁW¡ÁH£©

mm


Rotating Way

CZF-33

Vertical, air cooling,2 stage compression piston type

14.5

3.0

1200

4

160

970¡Á480¡Á750

Direct connection or belt rotation

18.5

1500

5.5

180

22

1800

5.5

180

(Note:It is suitable for ¨Q0.32m3 air bottle.The size of marine air compressors can be offered according to your special requests.)

Marine Medium Pressure Air Cooling Air Compressor CZF-33

Direct Connection Type CZF-33 Marine Medium Pressure Air Cooling Air Compressor

Marine Medium Pressure Air Cooling Air Compressor CZF-33

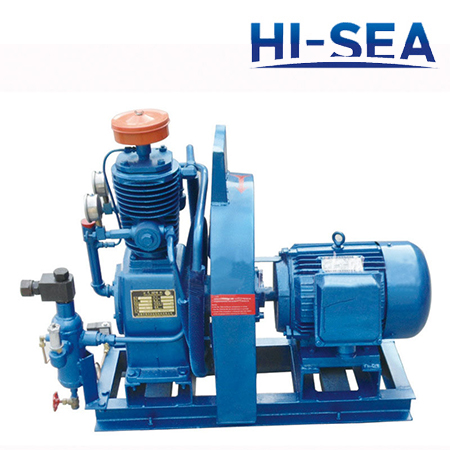

Belt Type CZF-33 Marine Medium Pressure Air Cooling Air Compressor

Classification Society Certificates are available,such as CCS,ABS,BV,RINA,GL,LR,etc. They can be offered along with marine air compressor.

Marine Medium Pressure Air Cooling Air Compressor CZF-33
