CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor

[Search Related Products]

CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor

CZF - 3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor

The type of this marine air compressor is single-row,air-cooled and piston.The displacement capacity is 3.5 m3 / h.The rated pressure is 1.0Mpa.The product has many characteristics,such as a simple structure,small volume,low energy consumption,low noise and long service life.It is easy to maintenance.It is used for providing air source for the ship whistle,oil and gas stove and auxiliary equipment.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.If you are interested in our products,please feel free to contact us directly.

Features:

Simple structure,small volume

Easy to maintenance

Low noise,long service life,low energy consumption

Fit for providing air source for the ship whistle, oil and gas stove and auxiliary equipment,easy to repair


Main Technical Parameter:

Model

Displacement Capacity£®m3/h£©

Specified
Pressure£®MPa£©

Rotating
Speed£®r/min£©

Motor Power

Dimension£®L°ŃW°ŃH£©mm

Weight£®kg£©

kW

HP

CZF°™3.5/1

3.5

1.0

810

0.75

1

650°Ń390°Ń580

58

(Note:HI-SEA marine air compressors can be offered according to your special requests.)

CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor

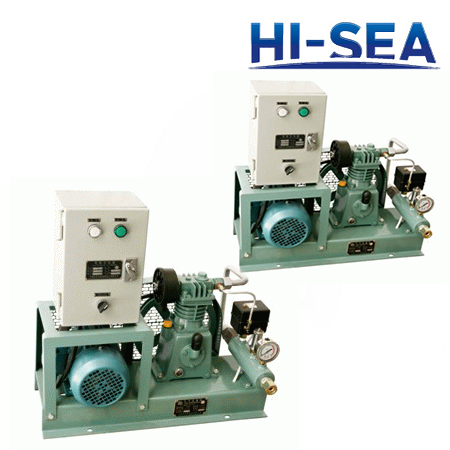

Picture of CZF-3.5/1 Marine Single-row Low Pressure Air-cooled Air Compressor

Certificates:ABS,GL,Nk,BV,CCS,etc. They can be offered along with marine air compressor.
