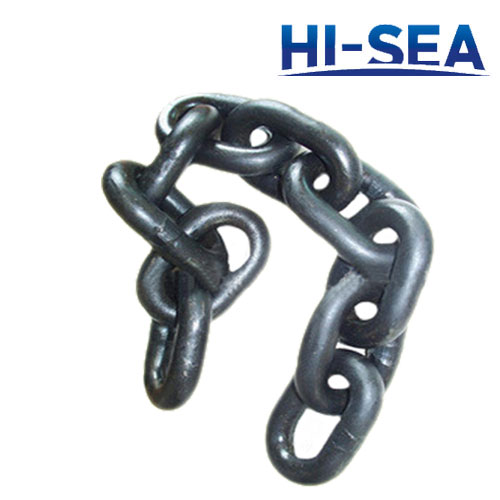

High Strength Fishing Lift Chain
Our company supplies all specifications of high strength fishing chains including short link chains, mid link chains, long link chains and other standard chains.
We can also provide customized service for our customers to meet their different needs. For more details, please feel free to contact us. We¡¯re sincere to cooperate with you.
Feature of Fishing Chains
1. Material: alloy steel
2. Function: transmission chain
3. Structure: welded chain
4. Quality Grade: G80
5. Safety Factor: min 4
6. Color: self color or as requested
7. Surface Treatment: polishing, blackened, painted, plastic coating, hot-dipped galvanized, electro-galvanized etc.
Short Link Chains
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Short Link Chain |
7*21 |
7.00 |
10 |
25.5 |
1.09 |
53 |
|
10*30 |
10.00 |
14 |
36 |
2.2 |
109 |
|
|
13*39 |
13.00 |
18.1 |
47.1 |
3.8 |
172 |
|
|
16*48 |
16.00 |
22.4 |
57.4 |
5.63 |
281 |
|
|
19*57 |
19.00 |
27.8 |
68.8 |
7.99 |
397 |
|
|
20*60 |
20.00 |
29 |
72 |
8.85 |
440 |
|
Mid Link Chains
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Mid Link Chain |
10*40 |
10.00 |
15 |
37 |
1.97 |
109 |
|
13*52 |
13.00 |
19.5 |
48.5 |
3.36 |
172 |
|
|
14*50 |
14.00 |
18.5 |
49.5 |
4.00 |
215 |
|
|
16*64 |
16.00 |
24 |
59 |
5.06 |
281 |
|
|
19*76 |
19.00 |
28.5 |
69.5 |
7.15 |
397 |
|
|
22*86 |
22.00 |
27 |
74 |
9.45 |
532 |
|
|
26*92 |
26.00 |
31 |
86 |
13.63 |
743 |
|
Long Link Fishing Chain
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Long Link Chain |
7*45 |
7.00 |
10 |
25.5 |
0.83 |
53 |
|
9*53 |
9.00 |
15 |
35 |
1.45 |
89 |
|
|
11*63 |
11.00 |
18 |
43 |
2.16 |
132 |
|
|
13*80 |
13.00 |
22 |
51 |
2.93 |
172 |
|
|
16*100 |
16.00 |
26 |
61 |
4.42 |
281 |
|
|
19*100 |
19.00 |
27 |
68 |
6.45 |
397 |
|
|
22*120 |
22.00 |
37 |
84 |
8.74 |
532 |
|
|
28*150 |
28.00 |
44 |
103 |
14.3 |
860 |
|
