Alloy Steel Fishing Chain
Our company manufactures all specifications of high quality alloy steel fishing chains including short link chain, mid link chain and long link chain. Different specifications of fishing chains have their special features.
Short Link Fishing Chain
Short link fishing chain has a good yield performance that can meet a variety of applications. The short link chains are the heaviest among the fishing chain series. Its chain diameters range from 7mm, 10mm, 13mm, 16mm, 19mm to 20mm.
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Short Link Chain |
7*21 |
7.00 |
10 |
25.5 |
1.09 |
53 |
|
10*30 |
10.00 |
14 |
36 |
2.2 |
109 |
|
|
13*39 |
13.00 |
18.1 |
47.1 |
3.8 |
172 |
|
|
16*48 |
16.00 |
22.4 |
57.4 |
5.63 |
281 |
|
|
19*57 |
19.00 |
27.8 |
68.8 |
7.99 |
397 |
|
|
20*60 |
20.00 |
29 |
72 |
8.85 |
440 |
|
Mid Link Fishing Chain
The strength of mid link chain is the same as short link chain, but due to its smaller number of links per meter, the wear of inner link is less. The mid link chains is lighter than short link chains and also cheaper. Mid link fishing chain diameter ranges from 10mm, 13mm, 14mm, 16mm, 19mm, 22mm to 26mm.
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Mid Link Chain |
10*40 |
10.00 |
15 |
37 |
1.97 |
109 |
|
13*52 |
13.00 |
19.5 |
48.5 |
3.36 |
172 |
|
|
14*50 |
14.00 |
18.5 |
49.5 |
4.00 |
215 |
|
|
16*64 |
16.00 |
24 |
59 |
5.06 |
281 |
|
|
19*76 |
19.00 |
28.5 |
69.5 |
7.15 |
397 |
|
|
22*86 |
22.00 |
27 |
74 |
9.45 |
532 |
|
|
26*92 |
26.00 |
31 |
86 |
13.63 |
743 |
|
Long Link Fishing Chain
Long link chains are much lighter than short link and mid link chains. The rotation space of its inner links is larger and convenient for the installation of accessories. Long link chain diameter ranges from 7mm, 9mm, 11mm, 13mm, 16mm, 19mm, 22mm to 28mm.
|
Chain Type |
Size(mm) |
Chain Diameter(mm) |
Width(mm) |
Weight(kg/m) |
Breaking Load min (KN) |
|
|
Inside min. |
Outside max. |
|||||
|
Long Link Chain |
7*45 |
7.00 |
10 |
25.5 |
0.83 |
53 |
|
9*53 |
9.00 |
15 |
35 |
1.45 |
89 |
|
|
11*63 |
11.00 |
18 |
43 |
2.16 |
132 |
|
|
13*80 |
13.00 |
22 |
51 |
2.93 |
172 |
|
|
16*100 |
16.00 |
26 |
61 |
4.42 |
281 |
|
|
19*100 |
19.00 |
27 |
68 |
6.45 |
397 |
|
|
22*120 |
22.00 |
37 |
84 |
8.74 |
532 |
|
|
28*150 |
28.00 |
44 |
103 |
14.3 |
860 |
|
Note: we can customize the specifications of chains according to our customer¡¯s requirements. We also supply other standards of chains such as American standard, Japanese standard, Korean standard, German standard and Australian standard chains and so on.
If you¡¯re interested in our products, please feel free to contact us. We¡¯re sincere to establish long-term cooperation relationship with you.

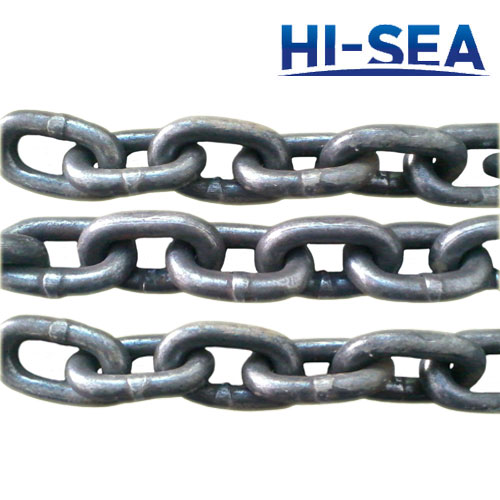

Alloy Steel Chains For Fishing
