DN650 Dredge Ball Joint

[Search Related Products]

DN650 Dredge Ball Joint

DN650 Dredge Ball Joint

DN650 Dredge Ball Joint can vibrate from 15 to 18 degrees tilting angle.There are various pressure levels,such as 10,20 or 30bar.DN650 dredge ball joint provides a flexible load-bearing connection between sections of a pipeline. The principle field of application is in floating lines, whose sections are supported by pontoons or other buoyancy. TheDN650 dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another.

In addition to the use in floating pipelines, DN650 dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The DN650 dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.

For more information,please feel free to contact us.

Features

1.Liner is made from war-resistant materials.And it is replaceable.

2.Easy assembly and dis-assembly.

3.It is hard to leak with flexible seal.

4.Quick fix,low cost.

5.Operate at low friction.

6.Low,medium and high pressure,high efficiency.

Specifications

15Degrees tilting angle

10 bar

20 bar

30 bar

Pipe I.D.

Ball Joint I.D.

Height

Width

Weight

Height

Width

Weight

Height

Width

Weight

[mm]

[mm]

[mm]

[mm]

[kg]

[mm

[mm]

[kg]

[mm]

[mm]

[kg]

650

694

633

1,285

1,001

798

1,379

1,408

904

1,457

1,828

18Degrees tilting angle

10 bar

20 bar

30 bar

Pipe I.D.

Ball Joint I.D.

Height

Width

Weight

Height

Width

Weight

Height

Width

Weight

[mm]

[mm]

[mm]

[mm]

[kg]

[mm

[mm]

[kg]

[mm]

[mm]

[kg]

650

5694

786

1,432

1,463

944

1,562

2,193

1,074

1,653

2,914

Note:DN650 Dredge Ball Joint can be offered according to your special requirements.

DN650 Dredge Ball Joint

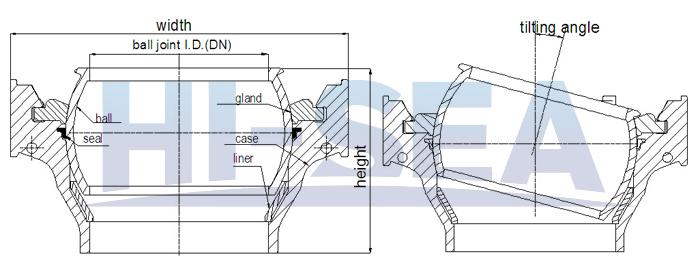

Drawing of DN650 Dredge Ball Joint

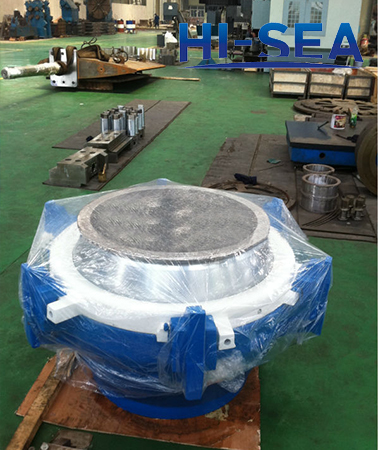

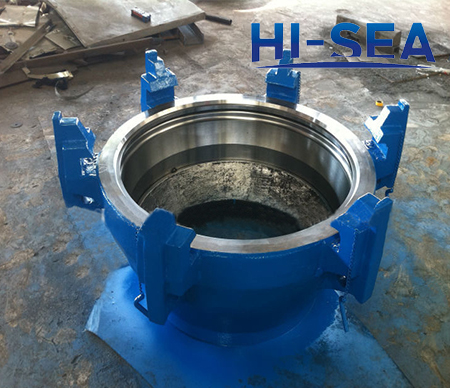

Pictures are as follows:

DN650 Dredge Ball Joint

DN650 Dredge Ball Joint
