CZW Marine Self-priming Sewage Pump
[Search Related Products]
Applications:
Delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works.
Main Technical Parameter
| Series Name | CZW |
| Feature | Horizontal, centrifugal pump |
| Product Name | Marine Self-priming Sewage Pump, simple construction, good self-priming performance, efficient, easy operation |
| Model | HS-CZW01 |
| Capacity (m3/h) | 5-800 |
| Head (m) | 14-60 |
| Speed (r/min) | 1725/1450/2900/3450 |
| Self-priming height | 4.5-6.0 |
| Efficiency (η%) | 45-65 |
| Application |
Applicable for marine to transport sewage, and for light industry and chemical industry to be used as trash pump |
| Medium tempreture | Max.80≧ |
| Certification | CCS, BV etc. |
Model Explanation
for example CZW(F) 50-15-30
CZW ！ Series marine self priming drainage pump
F ！ Crushing model
50 ！ Inlet diameter 50mm
15 ！ Flow 15 m3/h
30 ！ Head 30m

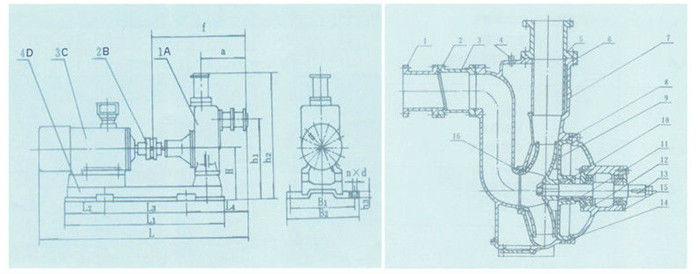

Structure Chart of Self-Priming Sewage Pump
|
1A. Self priming pump |
2B.Coupling |
3C. Motor |
4C. Base plate |
|
1. Inlet pipe |
2.inlet valve |
3. Middle pipe |
4. Screw for injet water |
|
5. Outlet pipe |
6. Pump body |
7. Separate pipe |
8. Back base |
|
9. Impeller |
10. Mechanical seal |
11. Anti-water ring |
12. Bearing |
|
13. Pump shaft |
14. Bearing cap |
15. Low cap |
16. Screw blot |
