CSW Marine Horizontal Centrifugal Pump

[Search Related Products]

CSW Marine Horizontal Centrifugal Pump


Applications:


1.Transport pure water

2.Water supply and drainage in industries and cities

3.Boost water-feeding for tall building

4.Fire-fighting water supply boost

5.Irrigation



Main Technical Parameter


Series Name CSW
Product Name Horizontal centrifugal pump
Product Model HS-CSW01
Features Horizontal and with motor, compared with the common pump it saves about 30% space
Capacity 1.1-465 m3/h
Head 8.5-160 m
Speed 2900 r/min
Motor power 0.75-160 kw
Application transport the fresh water, and liquid similar to the fresh water,

capable for industry and city water supply, high building water supply, irrigation, fire control,etc.

Tempreturee max.80íŠ
Certification CCS, BV

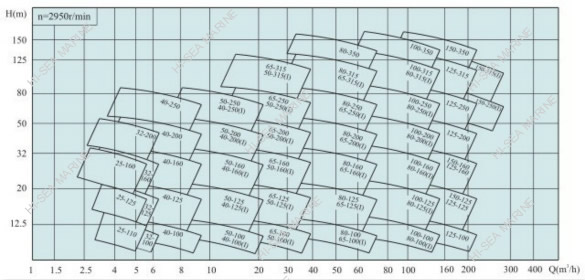

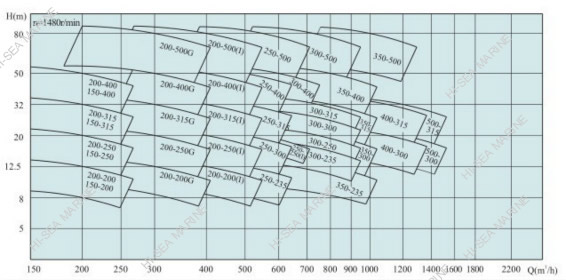

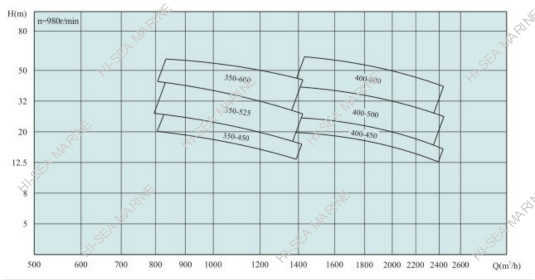

Performance Parameter


CSW Marine Horizontal Centrifugal PumpCSW Marine Horizontal Centrifugal PumpCSW Marine Horizontal Centrifugal Pump

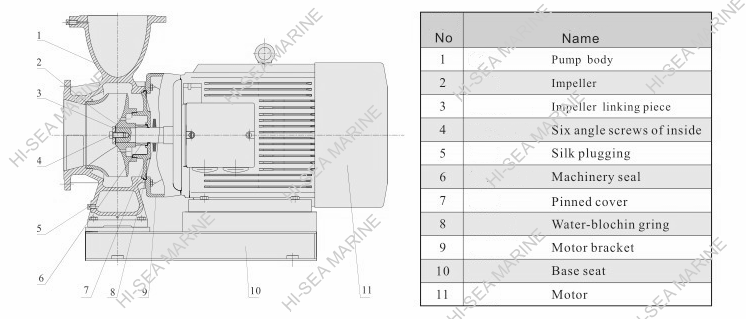

Structure:


CSW Marine Horizontal Centrifugal Pump



Our Certification

CSW Marine Horizontal Centrifugal Pump

Contact with us now

Our mail: manager@hiseamarine.com
