CP(T) Marine Ejector Pump

[Search Related Products]

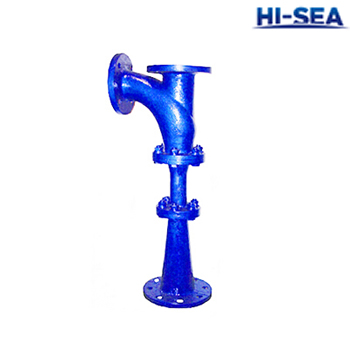

CP(T) Marine Ejector PumpCP(T) Marine Ejector Pump



Applications:



The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for 'spray, suction, mixed, expansion of' four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).



Model Explanation



for example CP(T)10-0.7


CP Marine ejector pump

10 Flow 10m3/h

0.7 Working water pressure 0.7Mpa

T Perpendicular type



Performance Parameter


Type

Work water/ Intel/ Outlet flange

(mm)

Capacity

(m3/h)

Pressure

(Mpa)

Wastage

(m3/h)

Hs

(m)

Delivery

(m)

Weight

(kg)

CP5-0.3T

32/50/50

5

0.3

6

4

5

19.5

CP10-0.3T

40/65/65

10

0.3

12

4

5

23.5

CP15-0.3 T

50/65/80

15

0.3

19

4

5

28

CP15-0.5T

50/65/80

15

0.5

24

7

11

28

CP20-0.3T

50/65/80

20

0.3

24

4

5

31

CP30-0.3T

65/100/100

30

0.3

36

4

5

50

CP40-0.3T

65/100/100

40

0.3

47

4

6

49.5

CP50-0.3T

80/125/125

50

0.3

55

3

6

75

CP100-0.3T

125/175/150

100

0.3

110

3

8

94.5

CP5-0.7T

25/50/32

5

0.7

3.6

4

8

14

CP10-0.7T

32/50/50

10

0.7

7

4

8

20

CP20-0.7T

50/65/80

20

0.7

14

4

8

28.5

CP30-0.7T

50/80/65

30

0.7

21

4

8

32

CP50-0.7T

65/100/80

50

0.7

35

4

8

48

CP60-0.7T

80/125/125

60

0.7

50

6

6

55.5

CP80-0.7T

80/125/125

80

0.7

90

5

10

75

CP100-0.7T

80/150/125

100

0.7

60

2

9

71.5

CP150-0.7T

80/150/150

150

0.7

100

2

9

77

CP200-0.7T

125/200/200

200

0.7

120

2

9

106

CP10-1.0T

50/50/65

10

1.0

16.7

5

2

16

CP50-1.0T

80/125/125

50

1.0

64

5

2

52

CP100-0.2T

200/200/250

100

0.2

305

3

7

120


Structure


CP(T) Marine Ejector Pump
