CCS Pressure Steel Pipes and Tubes


CCS Pressure Steel Pipes and Tubes

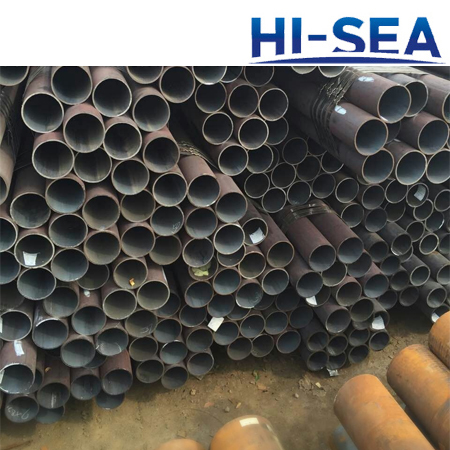

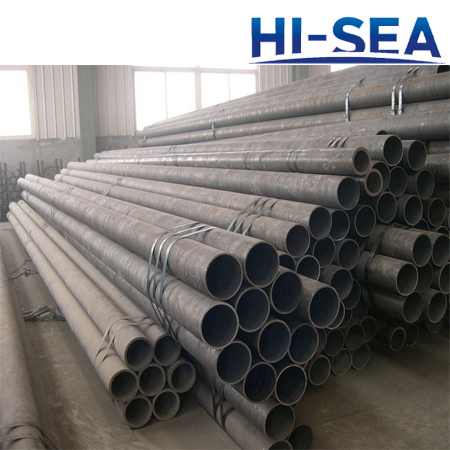

CCS pressure steel pipes and tubes are a kind of marine steel tubes used for pressure piping. The CCS pressure steel pipes and tubes are approved by China Classification Society. Materials of the tube conform to the requirements of GB/T 5312, and the specifications meet the standard GB/T 17395. Please contact us if you require other specifications, and we will customize pipes for you. There are five steel grades for the pipe: 320, 360, 410, 460, 490. The CCS pressure steel pipes and tubes can be divided into three grades¢ñ,¢ò,¢ó, according to design pressure and design temperature. Excepting the CCS pressure steel pipes and tubes, we also supply CCS seamless steel pipes, CCS boiler steel pipes, CCS stainless steel pipes... Please contact us for our whole product range!

Pipe Grades of CCS Pressure Steel Pipes and Tubes

Grade

¢ñ

¢ò

¢ó

Media

Design Pressure

MPa

Design Temperature

¡æ

Design Pressure

MPa

Design Temperature

¡æ

Design Pressure

MPa

Design Temperature

¡æ

>

-

¡Ü

Steam and hot oil

1.6

300

0.7~1.6

170~300

0.7

170

Fuel oil

1.6

150

0.7~1.6

60~150

0.7

60

Other media

4.0

300

1.6~4.0

200~300

1.6

200

Note

1. When a pipe¡¯s design temperature or design pressure meets requirements for grade¢ñon table A , the pipe will be certified as grade¢ñpipe. When a pipe¡¯s design temperature and design pressure both meets requirements for grade¢ò on table A , the pipe will be certified as grade ¢ò pipe.

2. Other media refer to air, water, lubricating oil, hydraulic oil...

3. Grade ¢ó pipes can be made according to national standards agreed by CCS.

Steel Grades and Chemical Composition

Steel Grade

Chemical Composition %

C

Si

Mn

S

P

Residual Elements

Cr

Mo

Ni

Cu

gross

320

¡Ü0.16

-

0.40~0.70

¡Ü0.020

¡Ü0.025

¡Ü0.25

¡Ü0.10

¡Ü0.30

¡Ü0.30

¡Ü0.70

360

¡Ü0.17

¡Ü0.35

0.40~0.80

410

¡Ü0.21

¡Ü0.35

0.40~1.20

460

¡Ü0.22

¡Ü0.35

0.80~1.20

490

¡Ü0.23

¡Ü0.35

0.80~1.50

CCS Pressure Steel Pipes and Tubes

CCS Pressure Steel Pipes and Tubes

CCS Pressure Steel Pipes and Tubes

CCS Pressure Steel Pipes and Tubes


CCS Pressure Steel Pipes and Tubes
