Bimetallic Thermometer with thermocouple

Introduction

We adopt integral design for bimetallic thermometer with thermocouple(thermal resistance) to measure temperature on the spot or remote transmission and can measure the temperature of liquid, vapor, gas and solid surface from -80℃ to +500℃.

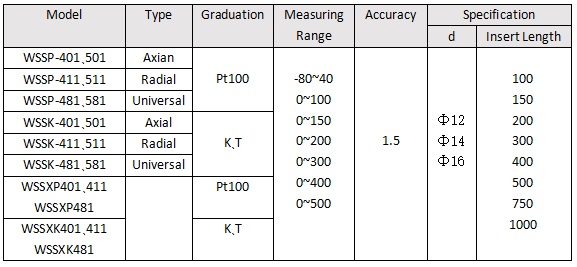

Technical Specificaation

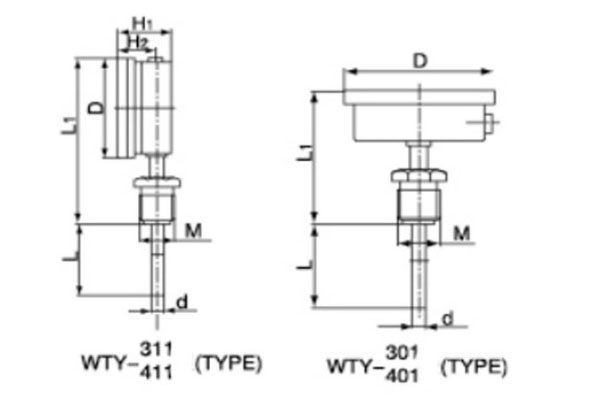

Drawing
