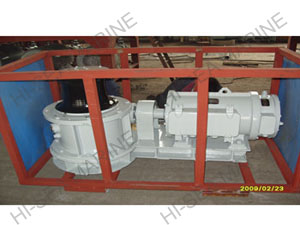

Electric capstan
This series anchor capstan complies with the rules for the construction and classfication of sea-going ships(CCS) and the Yangize River’s ships. And it is made by Hi-Sea Marine in China, suitable for using in ships on inland river or coastal water. This series anchor capstan has a reature of small in area on the deck.
Main Technical Specification:
| Warping Load(kN) | Warping Speed(m/min) | Wire Dia.(mm) | Motor Power(kW) |
| 5 | ≥18 | Ф11 | 3/1.2 |
| 10 | ≥18 | Ф11 | 4.3/1.7 |
| 15 | ≥18 | Ф13 | 8.5/3.5 |
| 20 | ≥18 | Ф15 | 11/11/7.5 |
| 30 | ≥18 | Ф17.5 | 16/16/11 |
| 50 | ≥18 | Ф20.5 | 16 |
| 70 | ≥18 | Ф26 | 22 |
| 100 | ≥18 | Ф28 | 45/45/30 |
| 120 | ≥18 | Ф32.5 | 60/60/45 |
| 150 | ≥18 | Ф36.5 | 60/60/45 |
| 200 | ≥18 | Ф40 | 75/75/36 |
| 250 | ≥18 | Ф46 | 75/75/36 |
