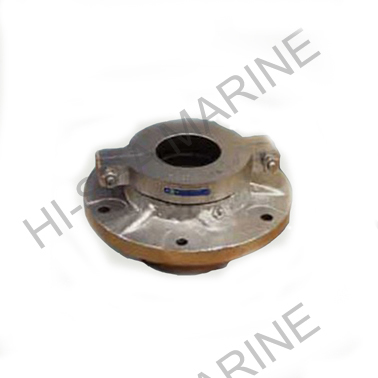

Upper Rudder Carrier CB*3145

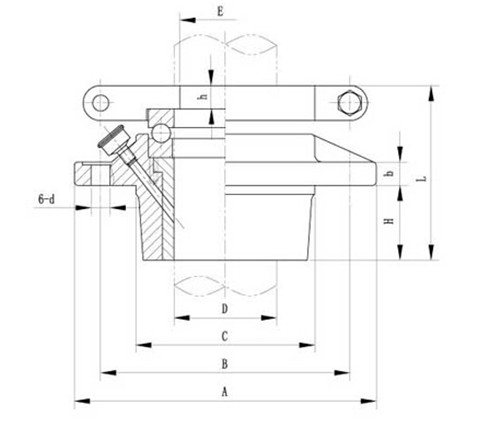

Dimensions (mm)										Weight (kg)
A	B	C	D	E	L	H	b	h	d	Weight (kg)
146	120	80	40	34	80	34	12	14	M10	2.6
160	134	92	50	44	92	43	14	14	M10	4.8
188	158	110	60	52	106	45	14	16	M12	6.1
206	170	122	70	62	114	51	16	16	M12	9.1
235	199	135	80	70	124	65	16	18	M12	13.2
260	220	154	90	80	145	68	18	20	M16	21
298	250	174	100	88	158	70	20	20	M16	26.4
320	272	188	110	98	168	80	20	20	M16	32.3
342	294	202	120	106	183	90	22	24	M16	40.4
382	322	230	140	126	210	110	24	24	M20	55.8
424	354	258	160	144	239	120	26	28	M20	66.2
456	386	286	180	164	264	130	28	28	M20	89.0
490	422	318	200	180	294	140	30	32	M24	125.4
516	446	338	220	200	315	155	30	32	M24	154.0
