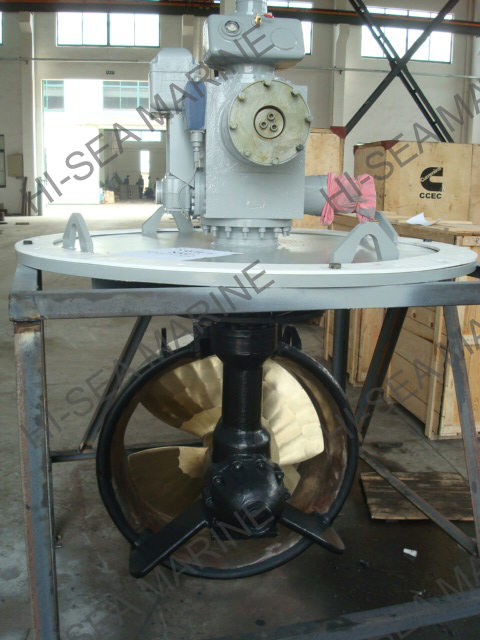

Stern Thruster[Search Related Products]
We can supply ABS,BV,LR,GL,CCS etc certificate.Transom installation is one of the three installation types. It is used for ships and vessels whose space of engine room are small, such as floating cranes ,passenger ships, inland and coasting vessels etc. A mounting plate with sealing is fixed on the plate. That is the upper of the rudder propeller is fixed on the pin axis ,and the lower is clamped on the pushing ring. When releasing the thrust bearing ,the propeller can easily be elevated backwards.
Elastic suspension for special sound proofing is available for this mode of installation.
|
Type |
1
|
2 | 3 | 4 | 5 | 6 | 7 | 8 |
9 |
10 | 11 | 12 | |
|
MAX Input Power
kW/Hp |
45
|
100
|
210
|
300
|
255
|
350
|
480
|
490
|
620
|
920
|
1250
|
1650
|
|
|
61
|
135
|
285
|
400
|
347
|
476
|
650
|
666
|
843 |
1250
|
1700
|
2244
|
||
|
MAX Input Torque £¨N. m£©
|
200
|
420
|
850
|
1675
|
2500
|
2050
|
2800
|
5200
|
3300
|
5423
|
14740
|
19500
|
|
|
MAX Input Speed (r/min)
|
2300
|
2500
|
2350
|
2000
|
1000
|
1800
|
1800
|
1000
|
1800
|
1800
|
1000
|
1000
|
|
|
Reduction Ratio
|
i
|
1.93
|
2.5
|
2.68
|
3.46
|
2.37
|
3.34
|
3.96
|
2.20
|
4.04
|
5.059
|
3.257
|
3.58
|
|
upper
|
1.7
|
1.64
|
1.65
|
1.53
|
1.045
|
1.63
|
1.63
|
0.9032
|
1.53
|
1.647
|
1.286
|
1.286
|
|
|
lower
|
1.13
|
1.52
|
1.62
|
2.26
|
2.26
|
2.05
|
2.43
|
2.43
|
2.64
|
3.071
|
2.533
|
2.79
|
|
|
Propeller Diameter (mm)
|
MAX
|
500
|
800
|
950
|
1150
|
1150
|
1350
|
1550
|
1550
|
1500
|
1800
|
2100
|
2300
|
|
MAX
|
|
|
700
|
900
|
|
1100
|
1250
|
|
|
|
|
|
|
|
PAL Length £¨mm£©
|
MAX
|
2250
|
2800
|
2800
|
4250
|
4400
|
4750
|
4750
|
4750
|
5000
|
|
|
|
|
MAX
|
350
|
875
|
980
|
1400
|
1400
|
1750
|
1750
|
2000
|
1700
|
2600
|
2800
|
3000
|
|
|
Weight (kg)
|
65
|
190
|
300
|
1370
|
|
2000
|
2100
|
3580
|
2800
|
5850
|
11000
|
16500
|
|
|
Per 100mm extension Weight (kg)
|
8
|
9
|
20.4
|
40
|
40
|
40
|
40
|
40
|
45
|
||||
