SK Type Static Mixer

[Search Related Products]

SK Type Static Mixer

SK Type Static Mixer:

1.DN:10500mm.

2.Material:SS304/SS316.

3.Highest degree of dispersion:10m.

4.Uneven mixing coefficient:7%.

5.Applicable fluid viscosity:104cps.

6.Applicatio:Homogeneous mixing,reaction,color matching,chemical,oil fining etc.

7.Dimension table:

DN/mm
dh/mm
L/mm
Q/(m3/h)
10
5
150
0.15-0.30
15
7.5
300
0.3-0.6
20
10
500
0.6-1.2
25
12.5
500
0.9-1.8
40
20
500
2.2-4.5
50
25
500
3.5-7.0
80
40
1000
9-18
100
50
1000
14-28
150
75
1000
31-64
200
100
1000
56-110
250
125
1000
88-177
300
150
1000
127-255
350
175
1000
173-346
400
200
1000
226-452
500
250
1000
353-706

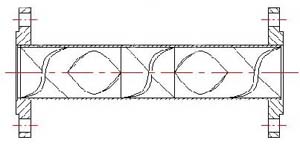

8.Drawing od SK Type Static Mixer:

SK Type Static Mixer
