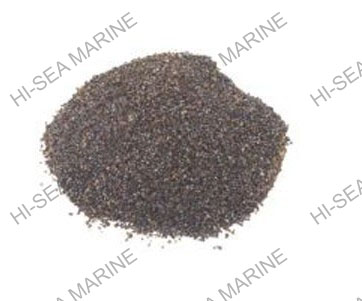

Sintered Flux:
The following issues should be noticed when stocking and using fluxes:
1.Fluxes are generally packed in bags. They should be transported properly to avoid damages. They should be stored in dry rooms to avoid damp that may affect welding quality.
2.Before using them, they should be baked according to the parameters specified in the specification. When baking them, they should be spread on the plates and the thickness should be 50mm at most.
3.Before welding, the impurities on welds of the base metals, such as rust, oil stains, moisture, etc., should be cleared away.
4.When using recycled fluxes, the slag crusts, powder and other impurities in them should be cleared away, and they should be mixed together with new fluxes before using them.
5.When using direct current, DCRP (Direct Current Reversed Polarity), which means the wire should be connected to the positive terminal, is generally used.
| GB | AWS | Main Applications |
| F4A2-H08MnA F4A4-H08MnA F5A4-H10Mn2 | F6A4-EM12 | If used together with appropriate wires (such as H10Mn2, H08MnMoA, H08Mn2MoA, etc.), they can be used for welding many kinds of low-alloy structural steel, hull structural steel with higher strength and pressure vessel steel. |
| F5A4-H10Mn2 | F7A0-EA2-A2 | If used together with appropriate wires (such as H08MnA, H10Mn2, H08MnMoA, H08Mn2MoA, etc.). Able to be used for welding many kinds of low-alloy structural steel, such as hulls, boiler pressure vessels, pipelines, etc., they can be used for multi-layer welding, single pass welding by both sides, multi-wire welding and narrow-gap submerged-arc welding. |
| F5A5-H10Mn2 F5A4-H10Mn2 | F7A5-EAH14 | If used together with appropriate wires (such as H10Mn2, H08MnMoA, H08Mn2MoA, etc.), they can be used for welding many kinds of low-alloy structural steel, hull structural steel with higher strength and pressure vessel steel. |
| F4A2-H08A F5A2-H08MnA | F6A2-EL8 F7A2-EM12 | If used together with appropriate wires (such as H08A, H08MnA and H08MnMoA), they can be used for welding general structural steel, boiler steel, pipeline steel, etc. Able to be used for multi-pass welding, single pass welding by both sides and multi-wire welding. Especially suitable for welding pipelines with all kinds of diameters. |
| F4A2-H08A | F6A0-EL8 | If used together with appropriate wires (such as H08A), they can be used for welding hull structures, and also used for welding general structural steel, boiler steel, pipeline steel, etc. Able to be used for multi-pass welding, single pass welding by both sides and multi-wire welding. |
| F5A2-H08MnA | F7A0-EM12 | If used together with appropriate wires (such as H08A), they can be used for welding hull structures, and also used for welding general structural steel, boiler steel, pipeline steel, etc. Able to be used for multi-pass welding, single pass welding by both sides and multi-wire welding. |
| F4A0-H08A | F6A0-EL8 | If used together with appropriate wires (such as H08A, H08MnA and H08MnMoA), they can be used for welding low-carbon steel and low-alloy steel structures, such as ships, boilers, pressure vessels. Especially suitable for high speed welding on thin plates. |
| F5A0-H08A | F7A0-EL8 | If used together with the wire H08A, they can be used for welding key low-carbon steel and some low-alloy steel structures, such as boilers, pressure vessels, etc. |
| F5A3-H08MnA | F7A2-EM12K | If used together with appropriated wires (such as H08A and H08MnA), they can be used for welding low-carbon steel and medium thickness plate structures made of some low-alloy steel. Able to be used for multi-pass welding, single pass welding, double-wire welding, etc. |
