Home Marine Power & Propulsion Equipment Marine Bearings Inland Water Vessel Shafting Intermediate Bearing JT4175-86(D type)

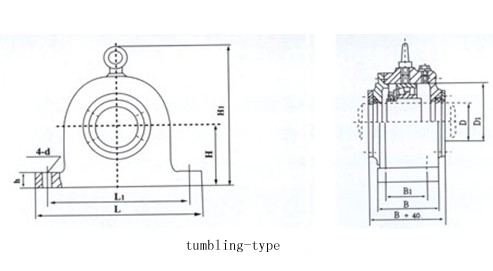

Shafting Intermediate Bearing [Search Related Products]

;

Type		Bearing Symbol	Dimensions (mm)										Weight (kg)
Type		Bearing Symbol	D	D1	L	L1	B	B1	H	H1	h	d	Weight (kg)
D	110	3253122	110	180	386	326	170	110	150	330	35	20	30
	115	3253123	115	200	406	346	180	120	160	345	35	20	35
	125	3253125	125	210	430	360	190	120	165	360	40	26	43
	125	3253125	125	225	446	376	200	130	175	380	40	26	53
	140	3253128	140	240	476	396	210	130	180	400	45	26	66
	150	3253130	150	250	486	406	220	140	190	415	45	32	80
	160	3253132	160	280	516	436	220	140	205	445	50	32	95
	170	3253134	170	290	540	450	240	150	210	460	50	38	112
	180	3253136	180	310	560	470	240	150	220	485	55	38	130
	200	3253140	200	340	590	500	250	160	240	530	55	38	150
	220	3253144	220	360	640	530	270	160	260	570	60	44	175
	240	3253148	240	400	680	570	290	180	280	610	60	44	200
	260	3253152	260	420	720	600	300	180	300	650	65	50	230
	280	3253156	280	460	760	640	310	190	320	690	65	50	260
	300	3253160	300	480	800	670	320	190	340	730	70	58	290
	320	3253164	320	520	840	710	330	200	360	770	70	58	340
