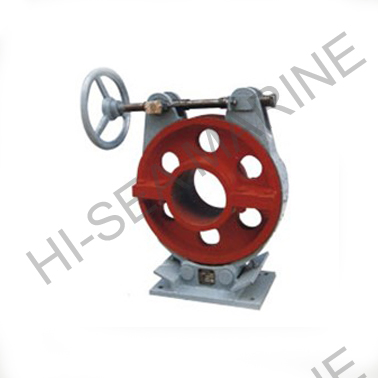

Shafting Brake

;

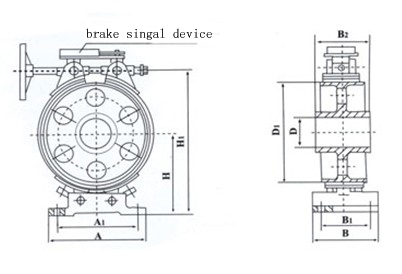

Type	Dimensions (mm)									Weight (kg)
	D	D₁	H	H₁	A	A₁	B	B₁	B₂
JZ60	60	450	360	640	320	260	160	110	160	84
JZ70	70									83
JZ80	80									82
JZ90	90									81
JZ100	100									80
JZ110	110	520	400	700	380	320	200	150	200	124
JZ120	120									123
JZ130	130									122
JZ140	140									121
JZ150	150									120
JZ160	160	620	450	820	440	380	260	200	240	190
JZ170	170									188
JZ180	180									186
JZ190	190									184
JZ200	200									182
JZ210	210	750	520	960	500	540	300	240	280	300
JZ220	220									295
JZ230	230									290
JZ240	240									285
JZ250	250									280
